CU199iP CU Model Series
Select a thumbnail to view a larger version

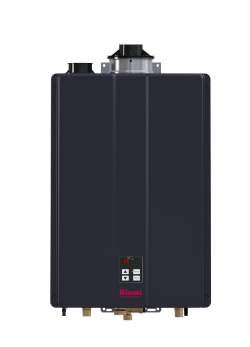

Commercial condensing tankless water heater CU199iP from Rinnai is precision engineered to provide endless hot water for the most demanding of applications such as restaurants, hospitality, education institutions, multifamily residential buildings and more. CU199iP is designed for indoor installation, propane gas fuel, is WiFi ready to monitor performance accross multiple units to ensure up time is maintained. Multiple venting options offer installation flexibility to meet your existing layout or for new build optimization.
- 97% Thermal Efficiency
- Warranty
- 15,000 BTU (minimum)
199,000 BTU (maximum)
-
Up to twice the lifespan of most tanks
-
Never run out of hot water
-
Compact size to fit every space
Specifications
| Manufacturer Trade Model Number - U.S. | CU199iP |
|---|---|
| Product Depth | 11.45 in / (290 mm) |
| Product Height | 31.3 in / (795 mm) |
| Product Width | 18.5 in / (470 mm) |
| Product Weight | 64 lb / (29 kg) |
| Gas Type | Propane |
| Recirculation Capable | Yes |
| Domestic Hot Water Flow Rate (Maximum) | 11 GPM / (41.6 l/min) |
| Wi-Fi Capable | Yes |
| SCAQMD Approved | Ultra Low NOx |
Documentation
-
100000072619 Version 5 Ubbink Instructions for Flex Vent Kit.pdfPDF 2 MB
100000072619 Version 5 Ubbink Instructions for Flex Vent Kit.pdfPDF 2 MB
100000313 OPU Instructions-English and French.pdfPDF 3 MB
100000403(01)-Pipe Cover Enclosure Installation Instructions.pdfPDF 0 MB
100000550-Cascade Cable Installation Instructions.pdfPDF 1 MB
100000552-EZ-2 Connect Instructions.pdfPDF 2 MB
100000553-PCB Replacement Instructions-SENSEI (1).pdfPDF 2 MB
100000574(02)-Freeze Protection Instructions for Tankless Water Heaters.pdfPDF 2 MB
100000601-Combustion Fan Replacement Instructions-SENSEI.pdfPDF 7 MB
100000625-PVC and CPVC Common Venting Installation Instructions for SENSEI (1).pdfPDF 2 MB
100000810-SENSEI Component Replacement Notice.pdfPDF 202 KB
100000878 Laser Vent Guide Instructions.pdfPDF 643 KB
100001001 Centrotherm PP Common Venting Installation Instructions for SENSEI (2).pdfPDF 2 MB
800000266 Gas Control Orifice Instructions (2).pdfPDF 290 KB -
100000437-N-Series Conversion Manual.pdfPDF 2 MB
100000437-SENSEI Conversion Manual.pdfPDF 3 MB -
CU199iP.pdfPDF 935 KB -
100000284-Rinnai Circ-Logic Guide.pdfPDF 2 MB
100000504-N Series Commercial Condensing Installation and Operation Manual-French.pdfPDF 8 MB
100000504-N Series Commercial Condensing Installation and Operation Manual-Spanish.pdfPDF 8 MB
100000504-N Series Commercial Condensing Installation and Operation Manual.pdfPDF 8 MB
100000573-SENSEI Demand Duo Retrofit Installation Instructions.pdfPDF 1 MB
100000699(02) BMS Installation and Operation Manual.pdfPDF 10 MB -
Commercial Water Heating Solutions - RE/REP/CU/RSCPDF 4 MB
Commercial WH Solutions Brochure_Installers.pdfPDF 6 MB
US Sensei to Sensei RX Cross-reference.pdfPDF 1 MB -

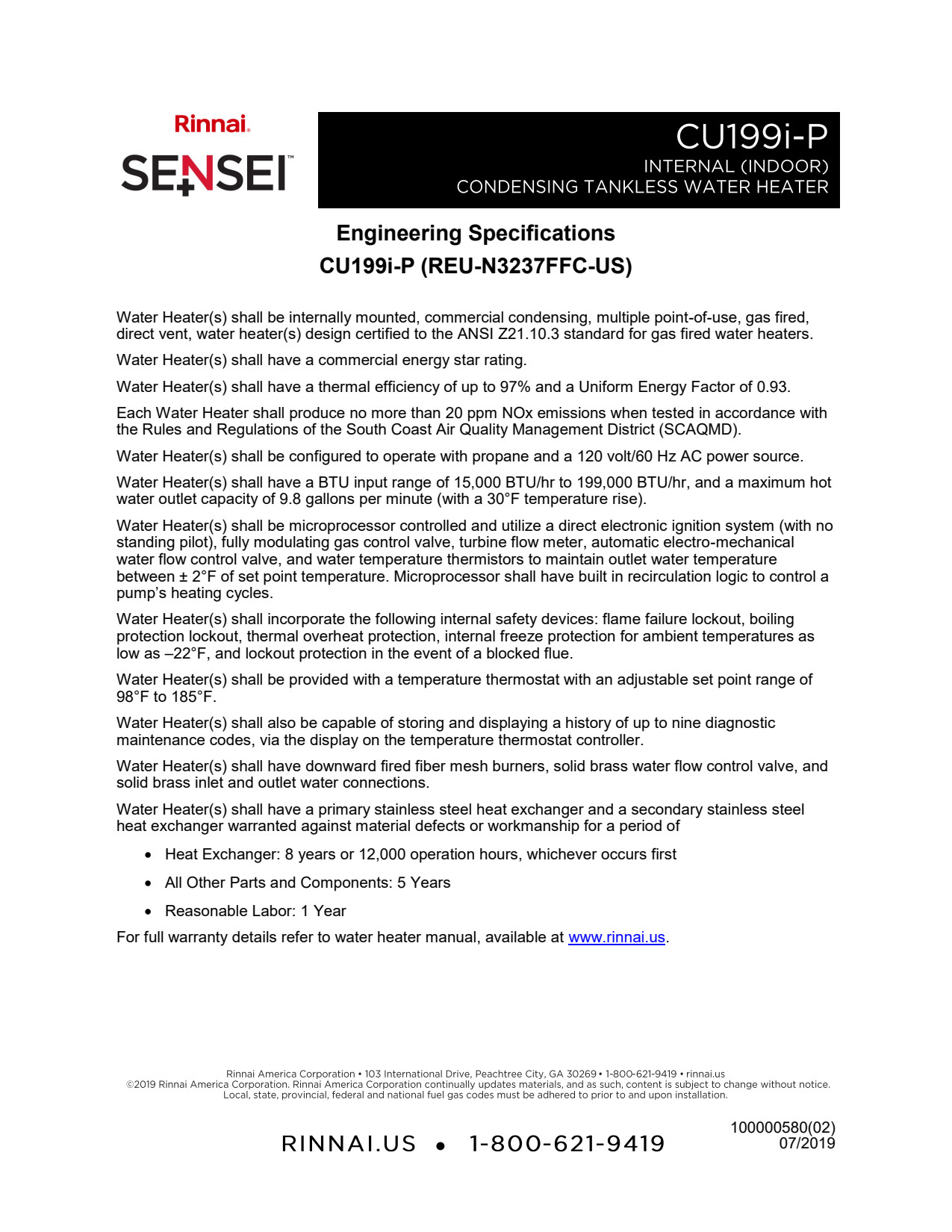

100000580(01)-CU199i-P Engineering Specification.pdfPDF 262 KB
