RL75eP VC Model Series
Select a thumbnail to view a larger version
Enjoy an endless supply of hot water with this high efficiency non-condensing propane fueled tankless water heater from Rinnai. Only the size of a small suitcase, the RL75eP is compact, easy-to-install, reliable and perfect for outdoor locations. Rinnai products provide peace of mind with warranties that surpass the competition.
- Uniform Energy Factor (UEF): 0.81
- Warranty
- 10,300 BTU (minimum)
180,000 BTU (maximum) - Outdoor
-
Up to twice the lifespan of most tanks
-
Never run out of hot water
-
Compact size to fit every space
Specifications
| Manufacturer Trade Model Number - U.S. | RL75eP |
|---|---|
| Product Depth | 9.6 in / (242.7 mm) |
| Product Height | 24.3 in / (616.2 mm) |
| Product Width | 14.04 in / (356.6 mm) |
| Product Weight | 43.6 lb / (19.8 kg) |
| Gas Type | Propane |
| Installation Type | Outdoor |
| Recirculation Capable | Yes |
| Uniform Energy Factor (UEF) | 0.81 |
| Domestic Hot Water Flow Rate (Maximum) | 7.5 GPM / (28.4 l/min) |
| Wi-Fi Capable | Yes |
| SCAQMD Approved | Ultra Low NOx |
Documentation
-
AHRICertificate-RL75e.pdfPDF 222 KB
Manufacturer's_Certification_Statement_-_Rinnai_2012-2013.pdfPDF 63 KB
Manufacturer's_Certification_Statement_-_Rinnai_2014.pdfPDF 203 KB
Manufacturer's_Certification_Statement_-_Rinnai_2015-2016.pdfPDF 327 KB -
100000313 OPU Instructions-English and French.pdfPDF 3 MB
100000313 OPU Instructions-English and French.pdfPDF 3 MB -
Energy Guide-RL75eP.pdfPDF 888 KB -
100000160-VB Outdoor Installation and Operation Manual.pdfPDF 1 MB
100000244-VC Installation and Operation Manual.pdfPDF 5 MB
100000923 Troubleshooting TWH Diagnostic Codes-French.pdfPDF 2 MB
Ubbink Non-Condensing Vent Manual.pdfPDF 4 MB -
Brochure_Tankless Water Heaters for Trade_R-TR-WH-E-01-r8.pdfPDF 33 MB
Water_Heating_Solutions_Trade_Brochure.pdfPDF 33 MB
2022107.A - Ground water temperature map update RL75i_RL75e.pdfPDF 322 KB -
100000663 Dedicated Recirculation Valve Overview.pdfPDF 944 KB
Builder R75LSe (VB) Spec.pdfPDF 87 KB
MSB-SP Specification Sheet.pdfPDF 632 KB
PCD03-SM2 RL75 RL94 RLX94 Pipe Cover Specification Sheet.pdfPDF 328 KB
R75LSe (VB2528WD-US) SP.pdfPDF 66 KB
RGB-25U-C Specification Sheet.pdfPDF 304 KB
RGB-25U-MSAL-C Specification Sheet.pdfPDF 180 KB
RL75e %28VC2528WD-US%29 SP.pdfPDF 343 KB

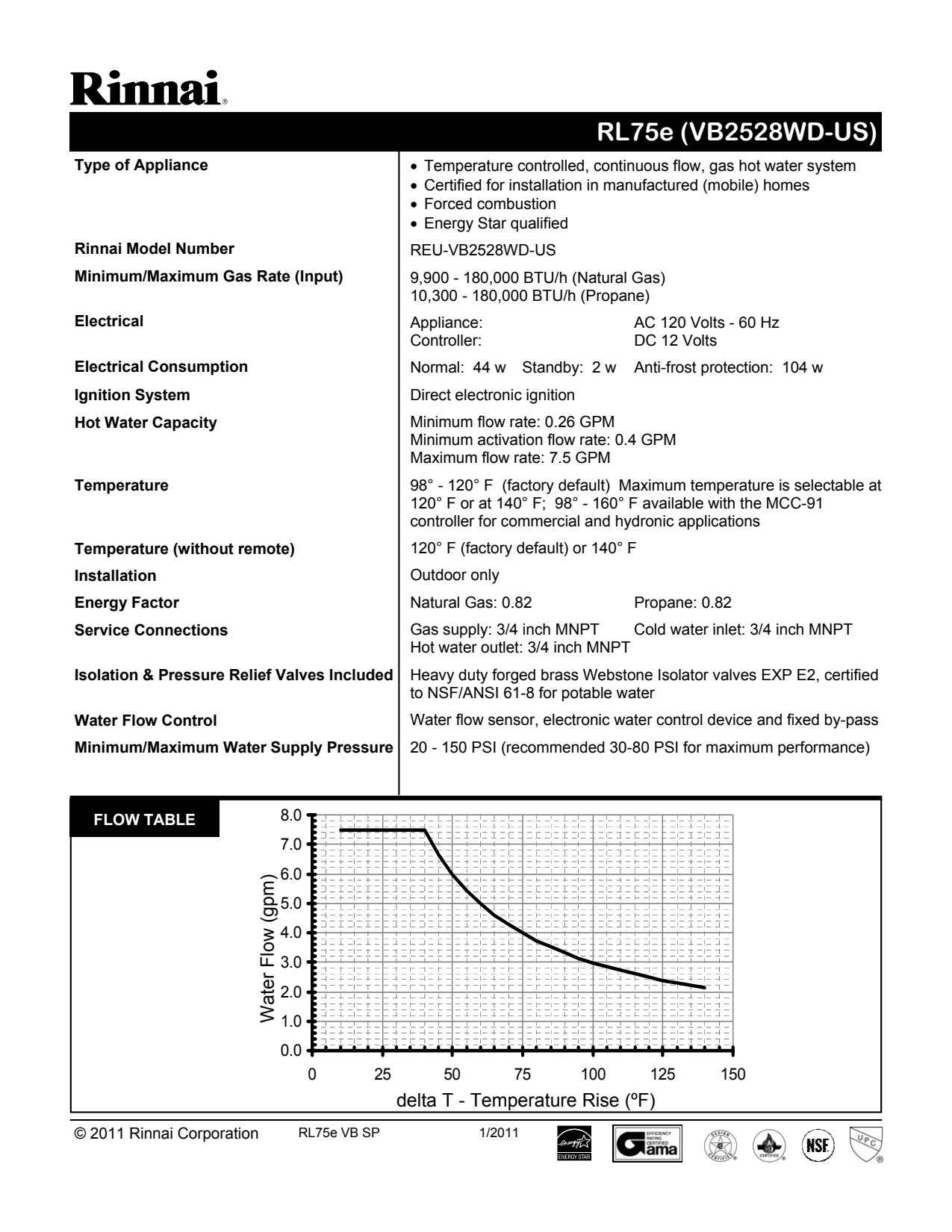

RL75e (VB2528WD-US) SP.pdfPDF 66 KB
RL75e (VC2528WD-US) SP.pdfPDF 645 KB -
TB 114-Updated Luxury Tankless Water Heater Warranty.pdfPDF 267 KB
TB-026 Outdoor Terminal Clearances.pdfPDF 232 KB

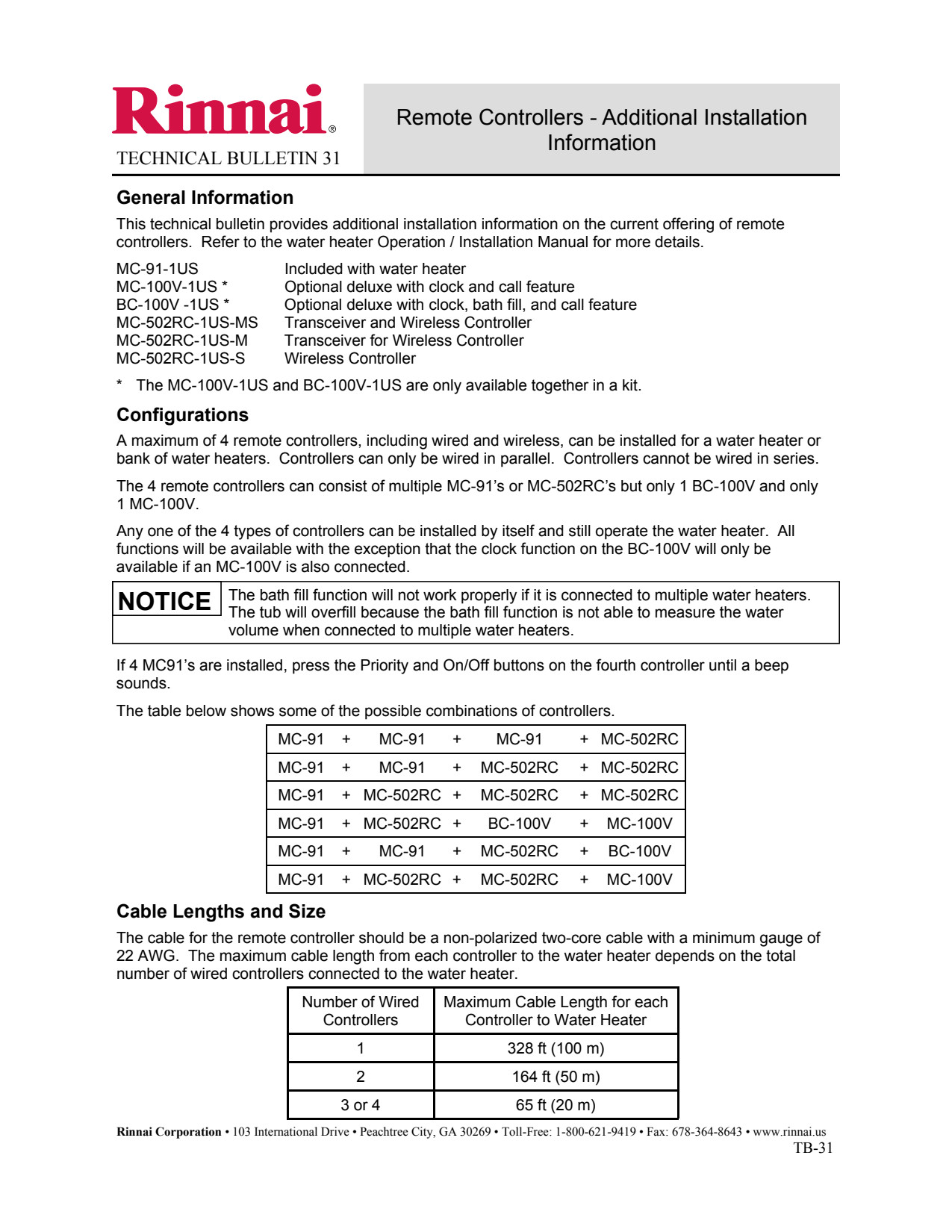

TB-031 Remote Controllers - Additional Installation Information.pdfPDF 16 KB

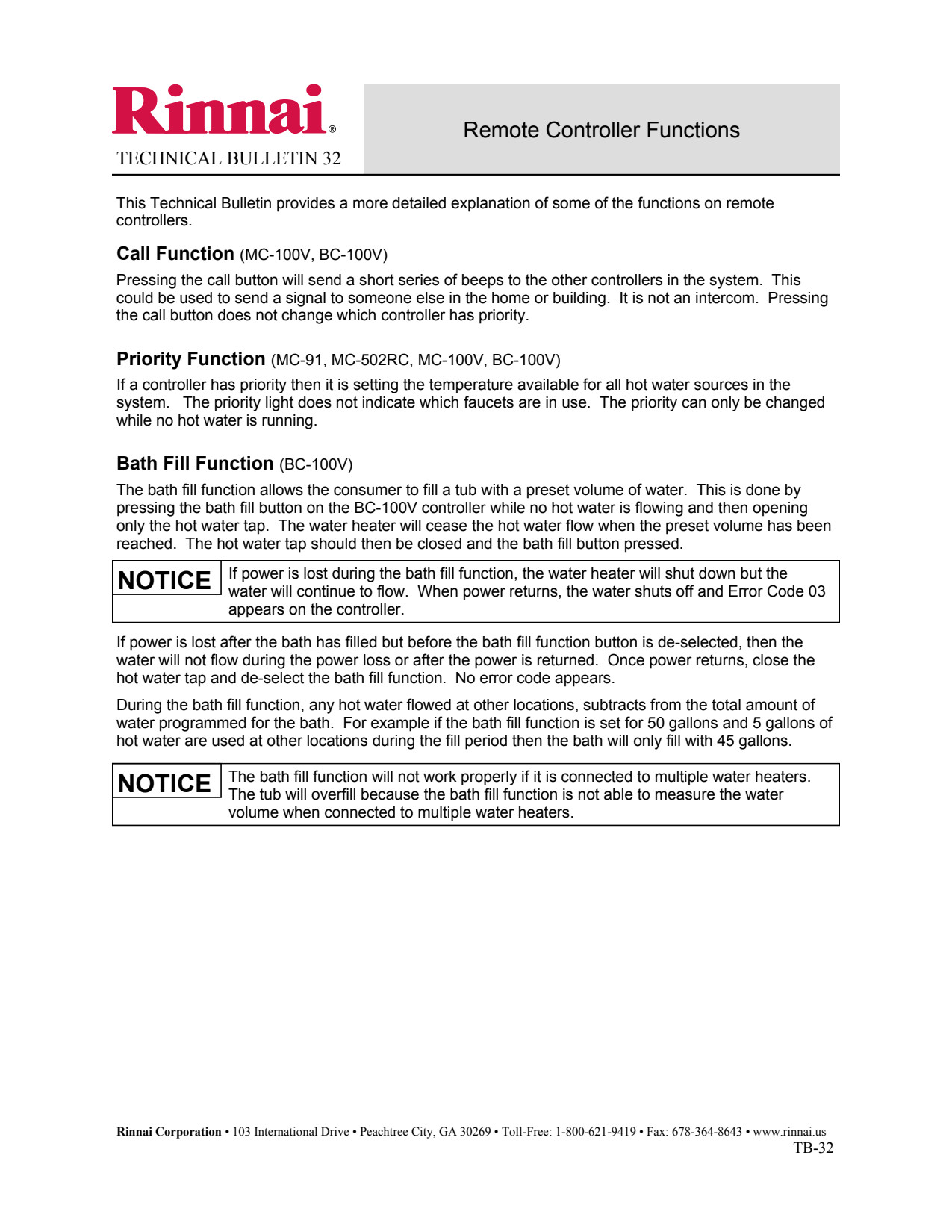

TB-032 Remote Controller Functions.pdfPDF 16 KB

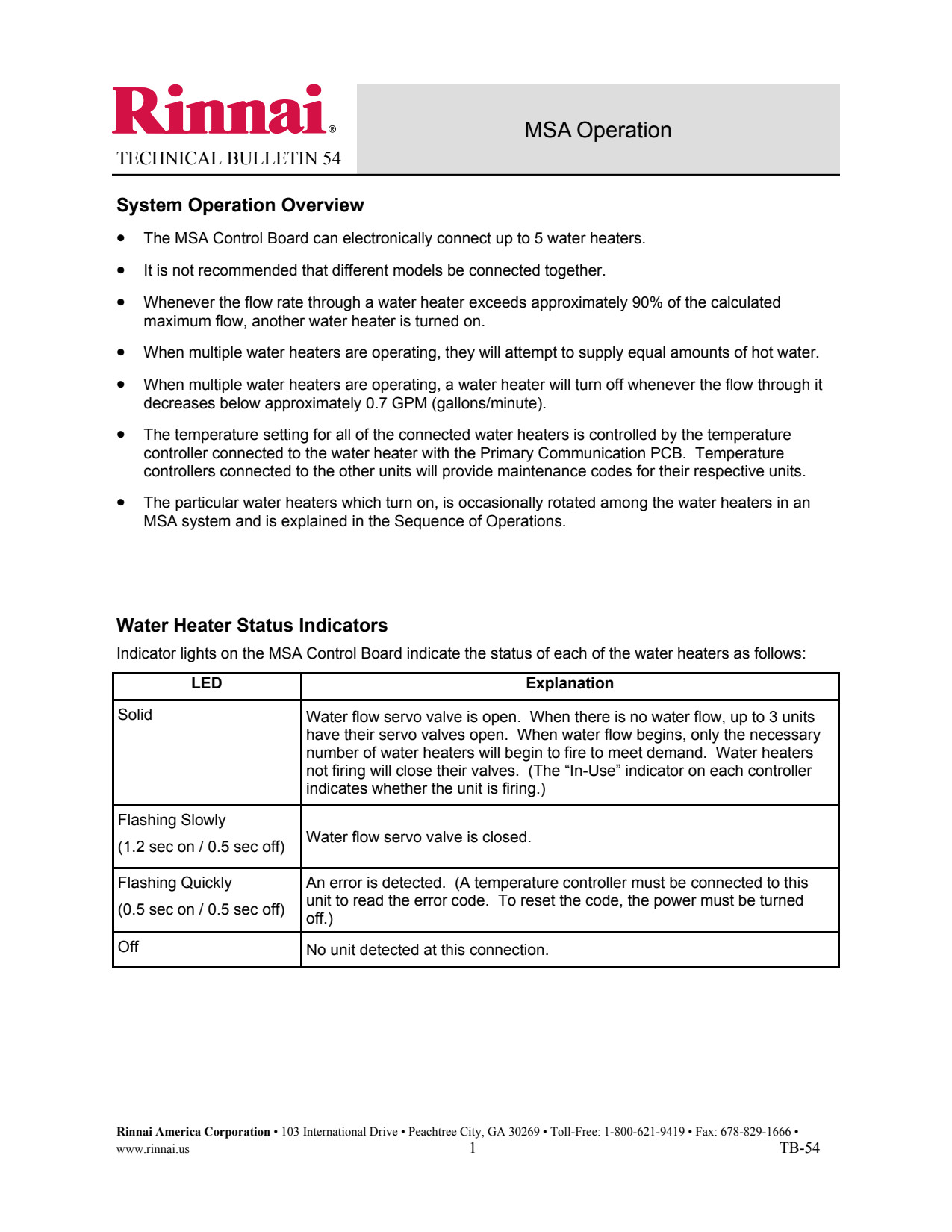

TB-054 MSA Operation.pdfPDF 35 KB
TB-055 EZConnect%E2%84%A2 Operation.pdfPDF 26 KB

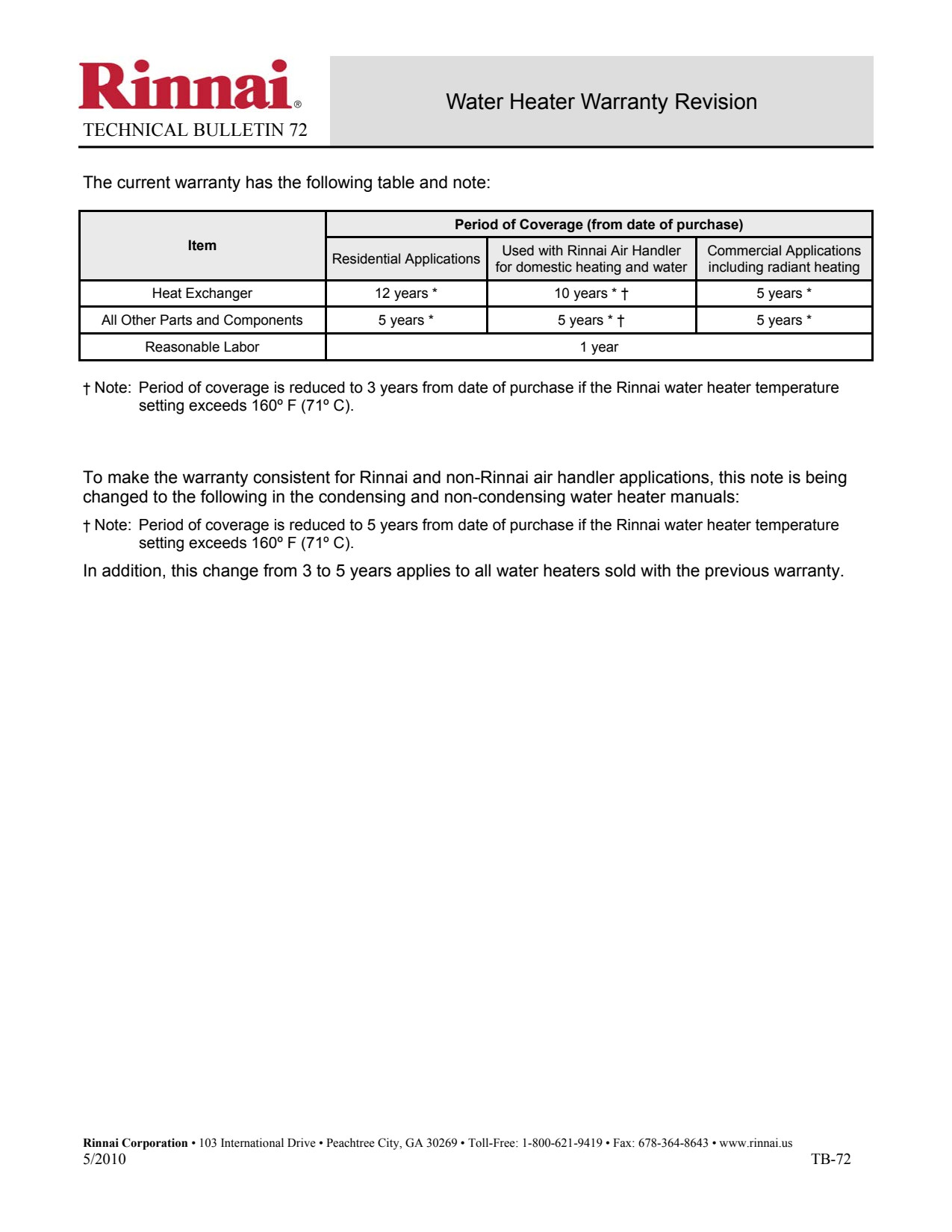

TB-072 Water Heater Warranty.pdfPDF 19 KB
TB-108 Updated Terminal Clearances for Outdoor Water Heaters.pdfPDF 232 KB
TB-121 Activation Flow Rates at Higher Temperatures.pdfPDF 308 KB
TB-130 Battery Backup for Tankless Water Heaters and Home Heating Products.pdfPDF 285 KB
TB-131 Use of Circ-Logic for Pump Applications greater than 120 VAC.pdfPDF 387 KB
TB-181 Higher Vinegar Concentration for Descaling_With MSDS.pdfPDF 417 KB -
(RL75e, RL94e) U287-1869x02(00).pdfPDF 1 MB
100000652-Troubleshooting TWH Diagnostic Codes.pdfPDF 2 MB
U307-0717(01) VC Outdoor Tech Sheet.pdfPDF 665 KB
U307-0724(00) VC Outdoor.pdfPDF 1 MB
U307-0733(00) VC Outdoor Tech Sheet.pdfPDF 1 MB -
100000657_Warranty_VC (HE+ Series).pdfPDF 335 KB
iWarranty information is available in the Installation & Owner Manual.
