V75eN VC Model Series
Select a thumbnail to view a larger version
V75eN is the perfect combination of high efficiency, comfort and value in a natural gas tankless water heater from Rinnai. Ideal for small to medium homes or remodels, compact, easy-to-install, reliable and perfect for outdoor locations; Rinnai products provide peace of mind with warranties that surpass the competition.
- Uniform Energy Factor (UEF): 0.81
- Warranty
- 10,300 BTU (minimum)
180,000 BTU (maximum) - Outdoor
-
Up to twice the lifespan of most tanks
-
Never run out of hot water
-
Compact size to fit every space
Specifications
| Manufacturer Trade Model Number - U.S. | V75eN |
|---|---|
| Product Depth | 9.6 in / (242.7 mm) |
| Product Height | 24.3 in / (616.2 mm) |
| Product Width | 14.04 in / (356.6 mm) |
| Product Weight | 43.6 lb / (19.8 kg) |
| Gas Type | Natural Gas |
| Installation Type | Outdoor |
| Uniform Energy Factor (UEF) | 0.81 |
| Domestic Hot Water Flow Rate (Maximum) | 7.5 GPM / (28.4 l/min) |
| Wi-Fi Capable | Yes |
| SCAQMD Approved | Ultra Low NOx |
Documentation
-
AHRICertificate-V75e.pdfPDF 222 KB
Manufacturer's_Certification_Statement_-_Rinnai_2012-2013.pdfPDF 63 KB
Manufacturer's_Certification_Statement_-_Rinnai_2014.pdfPDF 203 KB
Manufacturer's_Certification_Statement_-_Rinnai_2015-2016.pdfPDF 327 KB -
Energy Gudie-V75eN.pdfPDF 883 KB -
100000258-Value Series Installation and Operation Manual.pdfPDF 3 MB
100000923 Troubleshooting TWH Diagnostic Codes-French.pdfPDF 2 MB
100000924 Troubleshooting TWH Diagnostic Codes-Spanish.pdfPDF 2 MB
Ubbink Non-Condensing Vent Manual.pdfPDF 4 MB -
Brochure_Tankless Water Heaters for Trade_R-TR-WH-E-01-r8.pdfPDF 33 MB
Water_Heating_Solutions_Trade_Brochure.pdfPDF 33 MB

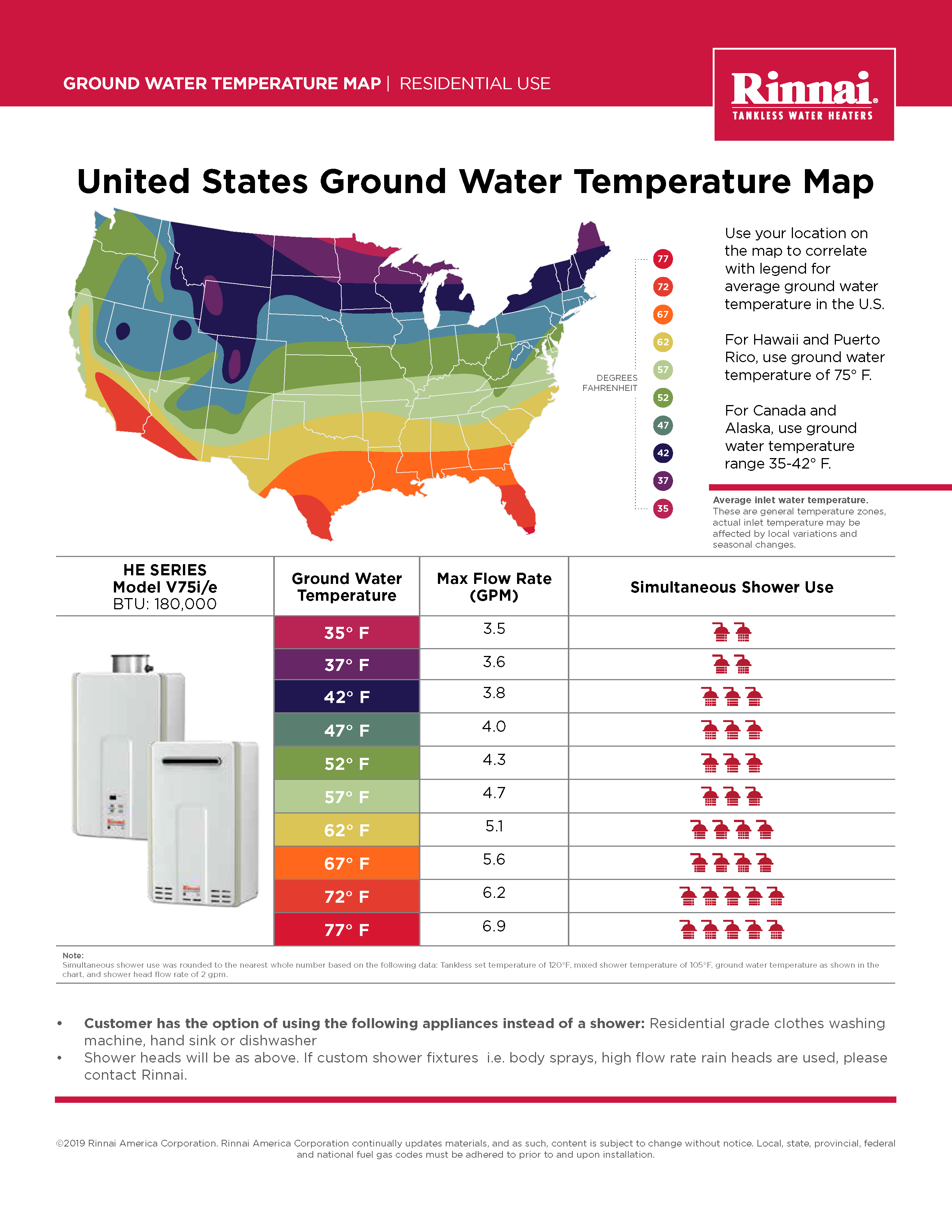

2022107.M - Ground water temperature map update V75i_V75e.pdfPDF 318 KB -
MSB-SP Specification Sheet.pdfPDF 632 KB
PCD03-EWV V94 V75 V65 Pipe Cover Specification Sheet.pdfPDF 79 KB
RGB-25U-C Specification Sheet.pdfPDF 304 KB
RGB-25U-MSAL-C Specification Sheet.pdfPDF 180 KB
V75e %28VC2528W-US%29 SP.pdfPDF 340 KB
V75e (VC2528W-US) SP.pdfPDF 655 KB -
TB 114-Updated Luxury Tankless Water Heater Warranty.pdfPDF 267 KB
TB-026 Outdoor Terminal Clearances.pdfPDF 232 KB
TB-108 Updated Terminal Clearances for Outdoor Water Heaters.pdfPDF 232 KB
TB-121 Activation Flow Rates at Higher Temperatures.pdfPDF 308 KB
TB-130 Battery Backup for Tankless Water Heaters and Home Heating Products.pdfPDF 285 KB
TB-150 Understanding EF and UEF.pdfPDF 197 KB
TB-172 Rinnai Products With Natural Gas-Hydrogen Mixture Fuels.pdfPDF 279 KB
TB-181 Higher Vinegar Concentration for Descaling_With MSDS.pdfPDF 417 KB -
100000652-Troubleshooting TWH Diagnostic Codes.pdfPDF 2 MB
U307-1117(00) V94e V75e V65e Techsheet.pdfPDF 1 MB -
WH-1-BC.DWGDWG 320 KB
WH-1-BC.pdfPDF 803 KBWH-1-CD.DWGDWG 337 KB
WH-1-CD.pdfPDF 789 KBWH-1-CIRC.DWGDWG 403 KB
WH-1-CIRC.pdfPDF 718 KBWH-2-BC.DWGDWG 432 KB
WH-2-BC.pdfPDF 818 KBWH-2-CD.DWGDWG 689 KB
WH-2-CD.pdfPDF 723 KBWH-2-CIRC.DWGDWG 688 KB
WH-2-CIRC.pdfPDF 725 KBWH-3-BC.DWGDWG 544 KB
WH-3-BC.pdfPDF 833 KBWH-3-CD.DWGDWG 0 MB
WH-3-CD.pdfPDF 732 KBWH-3-CIRC.DWGDWG 902 KB
WH-3-CIRC.pdfPDF 733 KBWH1-AH.DWGDWG 435 KB
WH1-AH.pdfPDF 719 KBWH1-D.DWGDWG 247 KB
WH1-D.pdfPDF 711 KBWH1-HX.DWGDWG 419 KB
WH1-HX.pdfPDF 718 KBWH1-S-1.DWGDWG 427 KB
WH1-S-1.pdfPDF 727 KBWH1-S-2.DWGDWG 447 KB
WH1-S-2.pdfPDF 725 KBWH1-SH.DWGDWG 423 KB
WH1-SH.pdfPDF 720 KBWH2-D.DWGDWG 386 KB
WH2-D.pdfPDF 718 KBWH2-S-1.DWGDWG 766 KB
WH2-S-1.pdfPDF 736 KBWH2-S-2.DWGDWG 748 KB
WH2-S-2.pdfPDF 732 KBWH3-D.DWGDWG 524 KB
WH3-D.pdfPDF 731 KBWH3-S-1.DWGDWG 1 MB
WH3-S-1.pdfPDF 741 KBWH3-S-2.DWGDWG 1 MB
WH3-S-2.pdfPDF 742 KB -
100000656_Warranty_Value (HE Series).pdfPDF 337 KB
iWarranty information is available in the Installation & Owner Manual.
