V65iN VC Model Series
Select a thumbnail to view a larger version

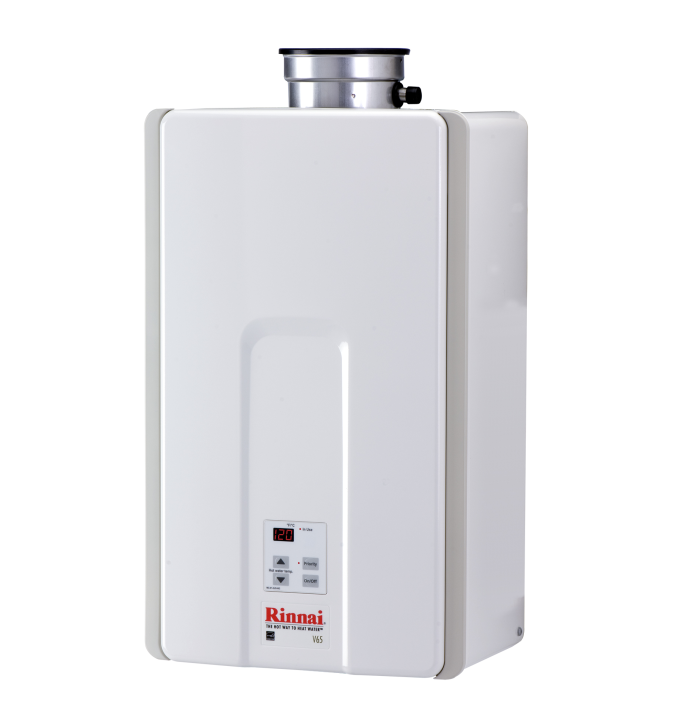

V65iN is the perfect combination of high efficiency, comfort and value in a natural gas tankless water heater from Rinnai. Ideal for small to medium homes or remodels, compact, easy-to-install, reliable and perfect for indoor locations; Rinnai products provide peace of mind with warranties that surpass the competition.
- Uniform Energy Factor (UEF): 0.8
- Warranty
- 10,300 BTU (minimum)
150,000 BTU (maximum) - Indoor
-
Up to twice the lifespan of most tanks
-
Never run out of hot water
-
Compact size to fit every space
Specifications
| Manufacturer Trade Model Number - U.S. | V65iN |
|---|---|
| Product Depth | 9.27 in / (235.5 mm) |
| Product Height | 26.9 in / (684 mm) |
| Product Width | 14.04 in / (356.6 mm) |
| Product Weight | 45.6 lb / (20.7 kg) |
| Gas Type | Natural Gas |
| Installation Type | Indoor |
| Uniform Energy Factor (UEF) | 0.8 |
| Domestic Hot Water Flow Rate (Maximum) | 6.5 GPM / (24.6 l/min) |
| Wi-Fi Capable | Yes |
| SCAQMD Approved | Ultra Low NOx |
Documentation
-

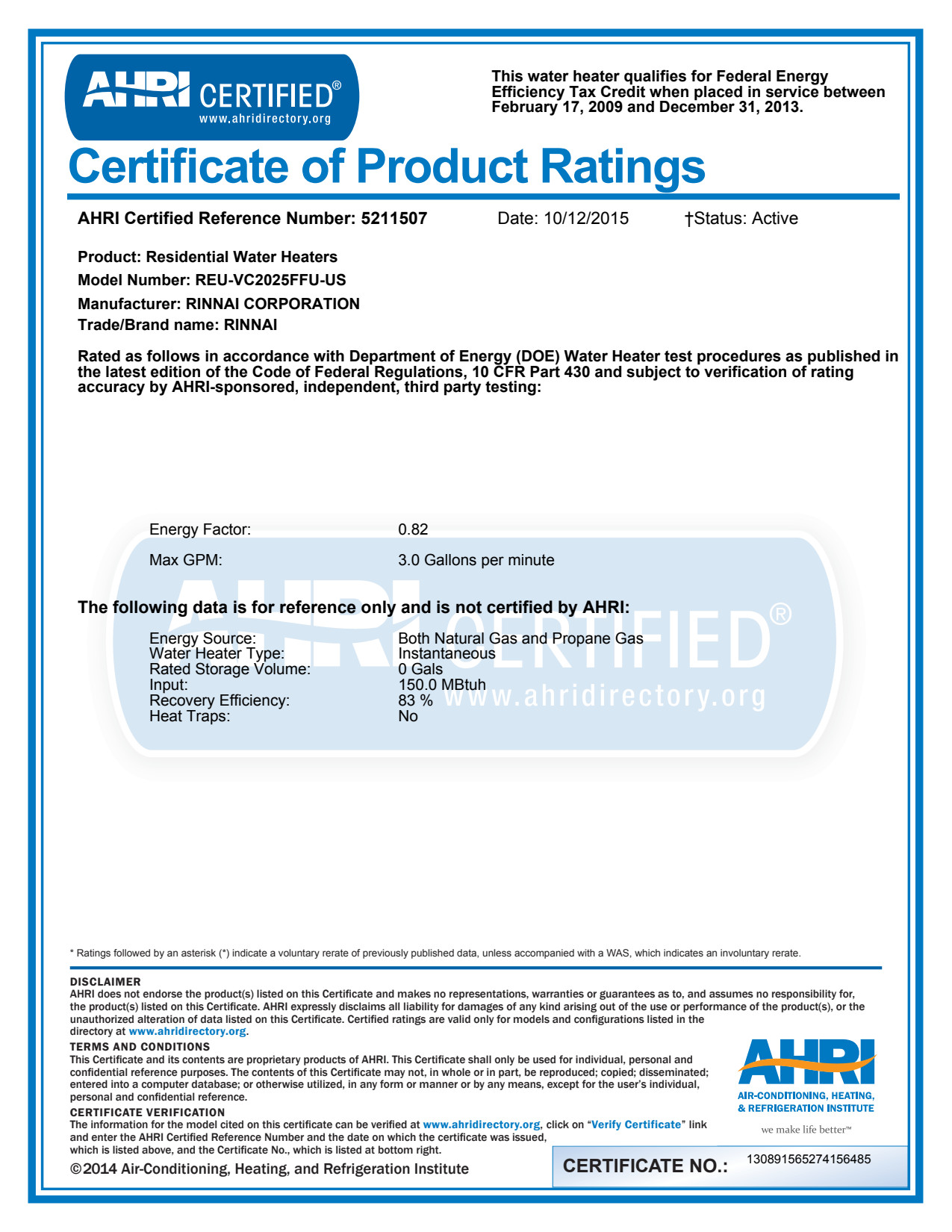

AHRICertificate-V65iPDF 222 KB
Manufacturer's_Certification_Statement_-_Rinnai_2012-2013.pdfPDF 63 KB
Manufacturer's_Certification_Statement_-_Rinnai_2014.pdfPDF 203 KB
Manufacturer's_Certification_Statement_-_Rinnai_2015-2016.pdfPDF 327 KB -
RL Water Flow Servo Valve Component Replacment Instructions-EnglishPDF 0 MB
RL Water Flow Servo Valve Component Replacment Instructions-EnglishPDF 0 MB
VC Combustion Fan Component Replacement Instructions EnglishPDF 686 KB -
AHRI Energy Guide V65i EnglishPDF 1 MB

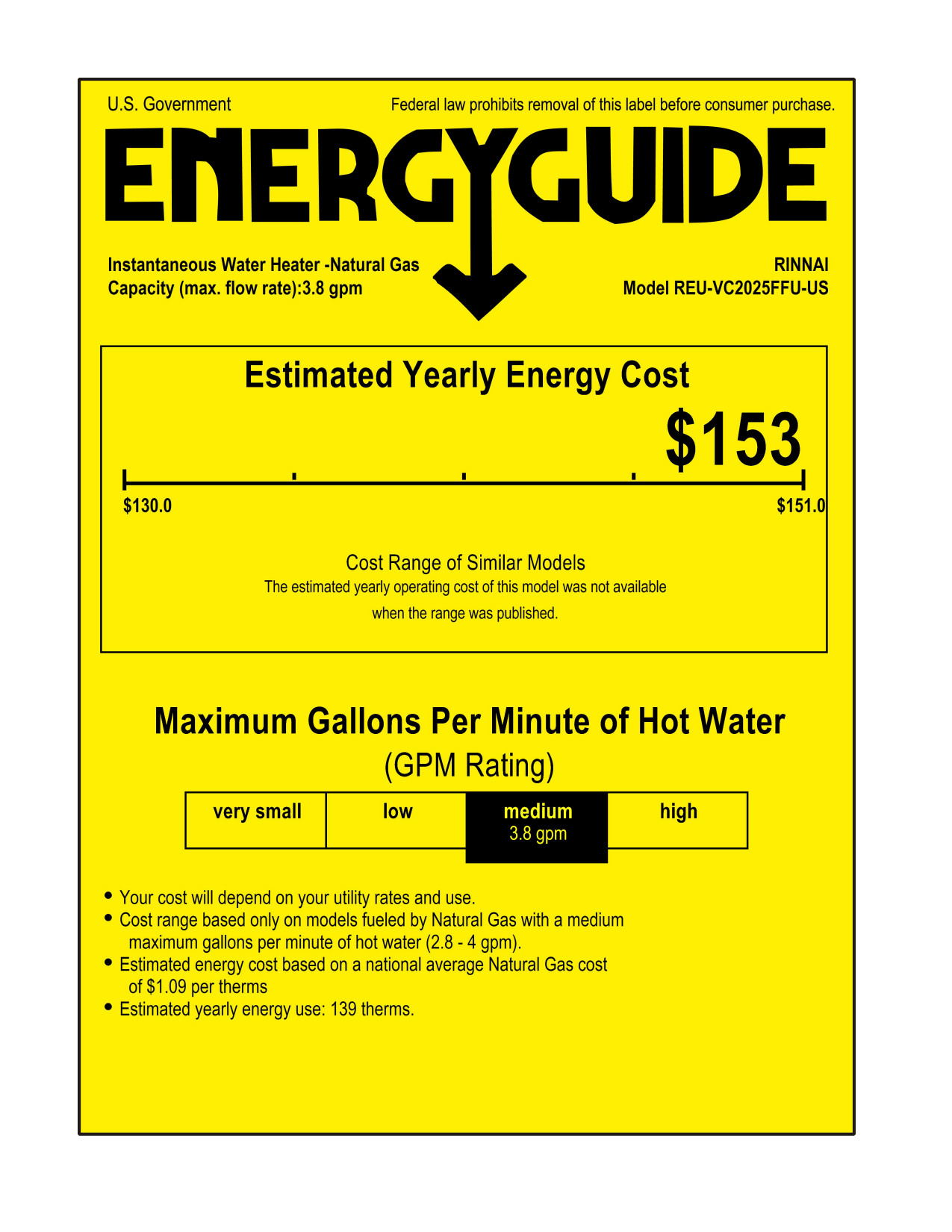

Energy Guide - V65iNPDF 922 KB -
Installation Manual: Value Series Tankless Water Heater - V65_V75_V94PDF 3 MB
Condensate Trap Installation Manual - RE/REPPDF 756 KB
Venting Manual: Ubbink Non-Condensing ConcentricPDF 4 MB -
Water_Heating_Solutions_Consumer_Brochure.pdfPDF 26 MB
Water_Heating_Solutions_Trade_Brochure.pdfPDF 33 MB
Ground water temperature map updatePDF 321 KB -

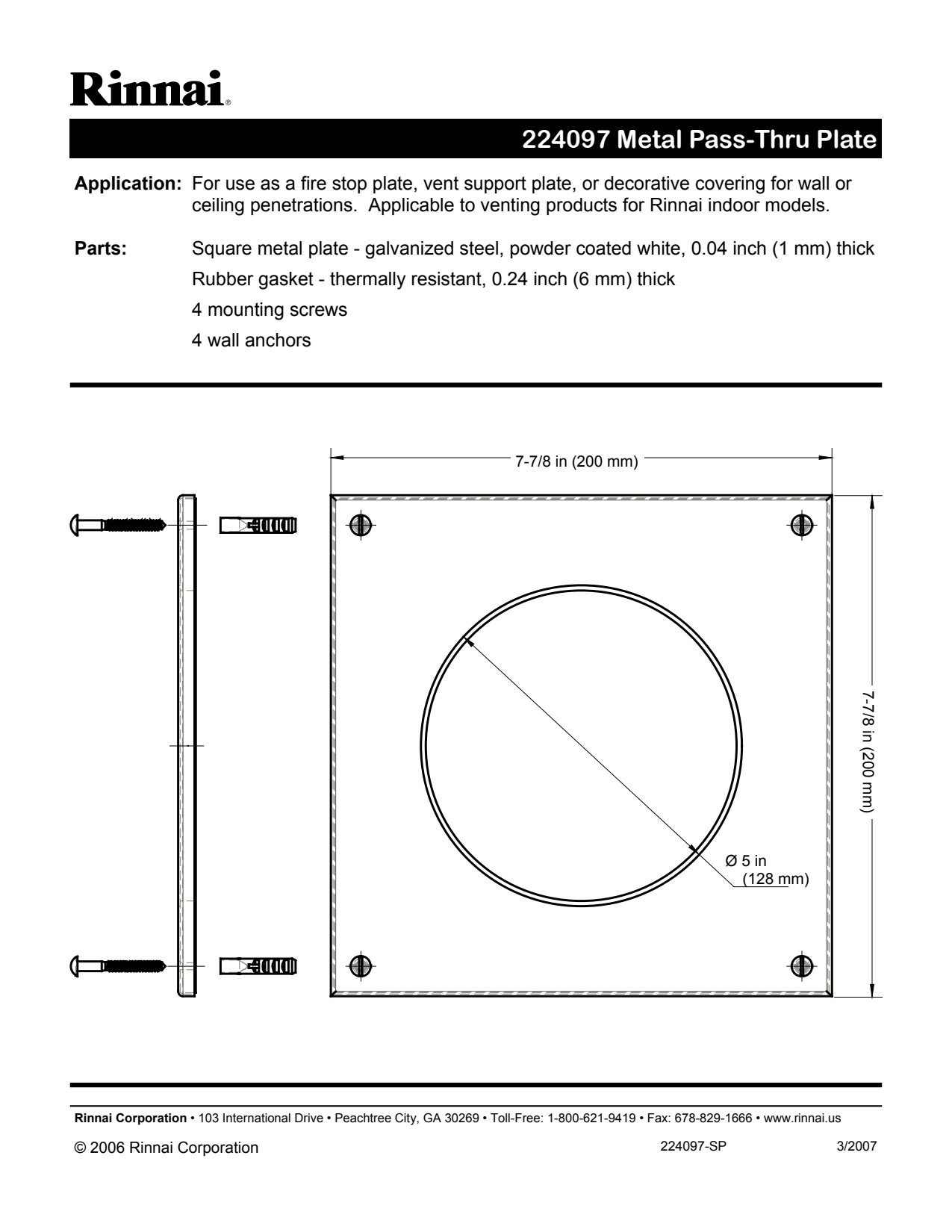

Venting Spec Sheet: Metal Pass Thru PlatePDF 47 KB
MSB-SP Specification Sheet EnglishPDF 632 KB
Supplemental Spec Sheet: Pipe Cover for V65_V75_V94 (PN# PCD03-EWV)PDF 79 KB
Ubbink Vent Concentric Non Condensing Specification Sheet - RE/REP/VPDF 514 KB

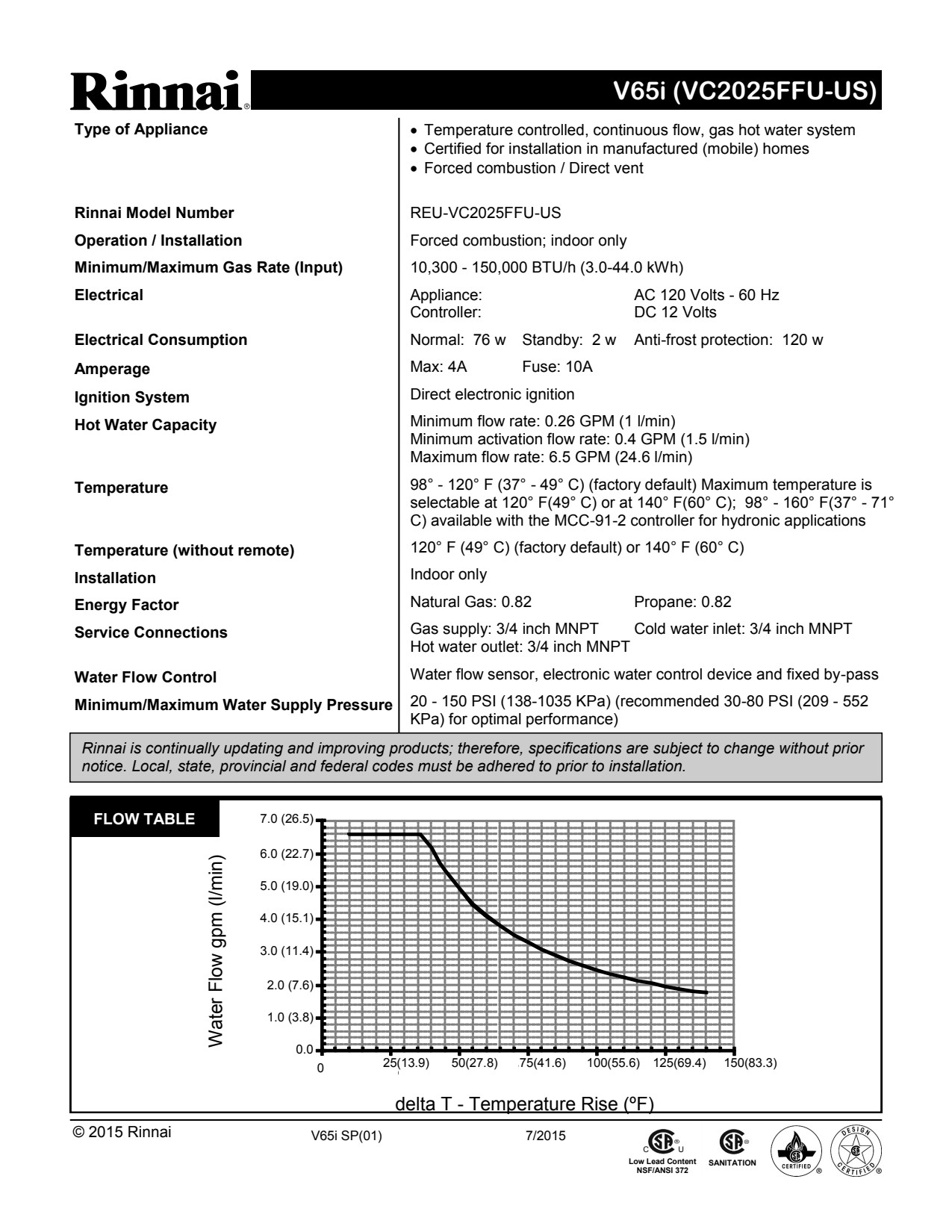

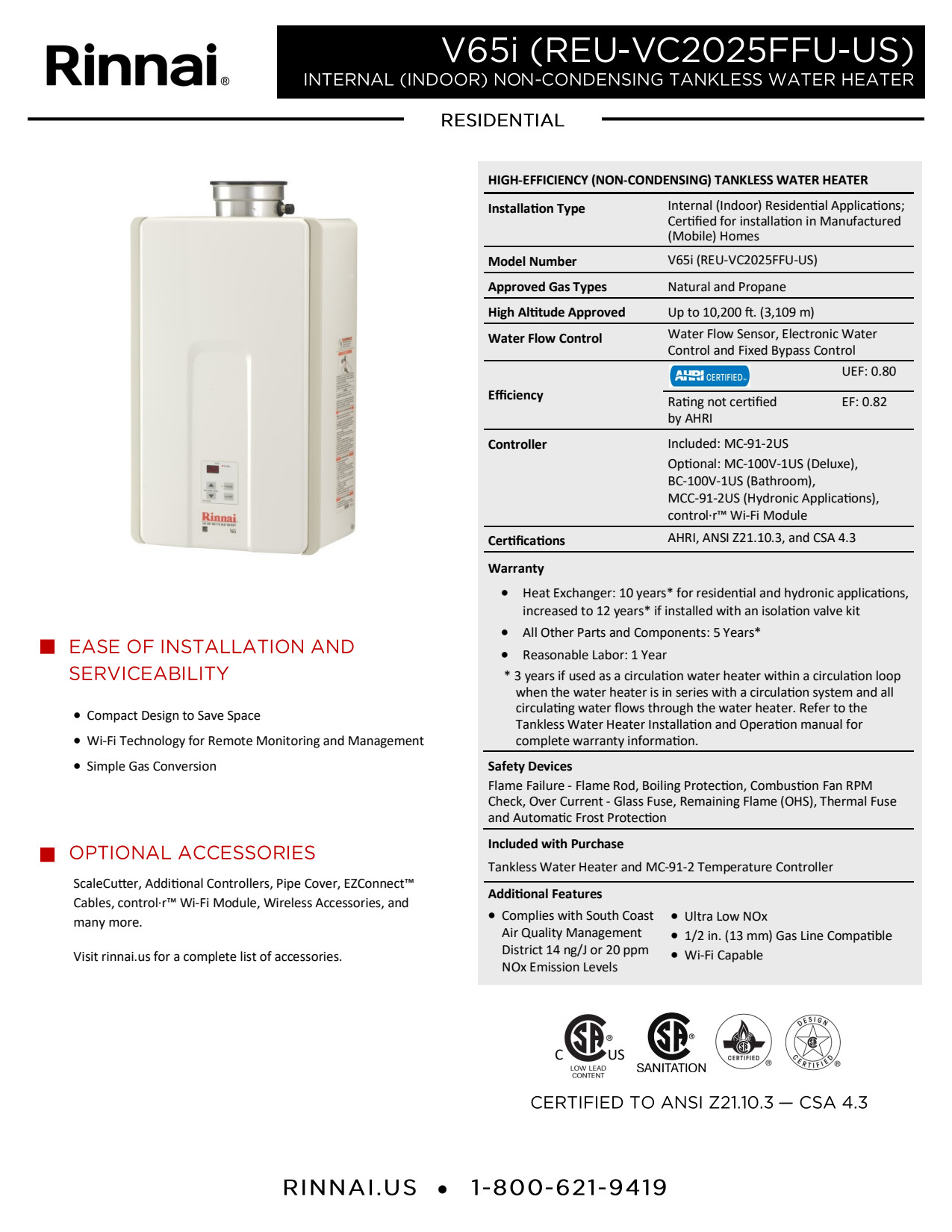

V65i (VC2025FFU-US) Specification Sheet EnglishPDF 383 KB
Spec Sheet: Value Series Tankless Water Heater- V65i (VC2025FFU-US)PDF 623 KB -

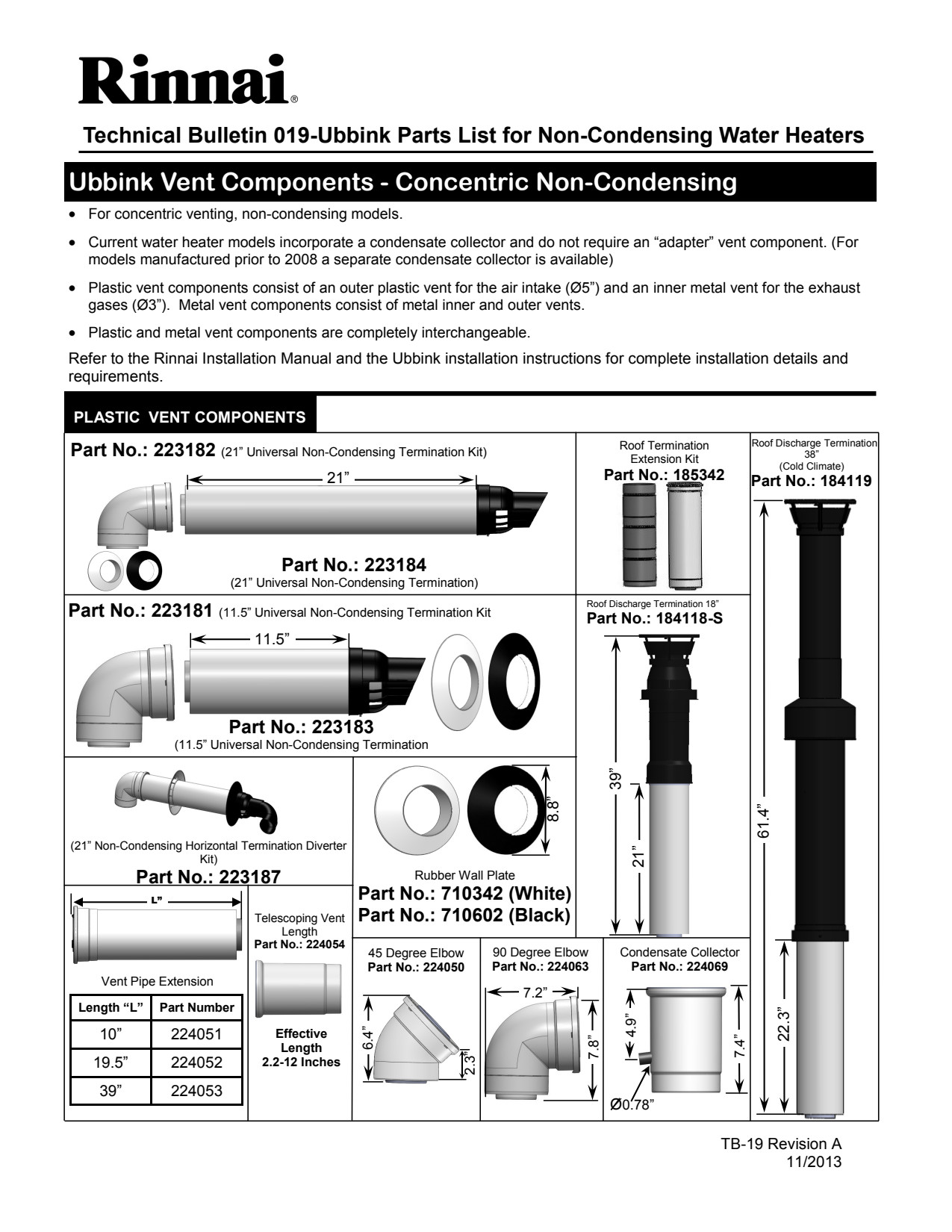

Tech Bulletin No 019: Ubbink Parts List (TB-019)PDF 1 MB
Tech Bulletin No 099: V65 Approved for High Altitude Installations (TB-099)PDF 193 KB

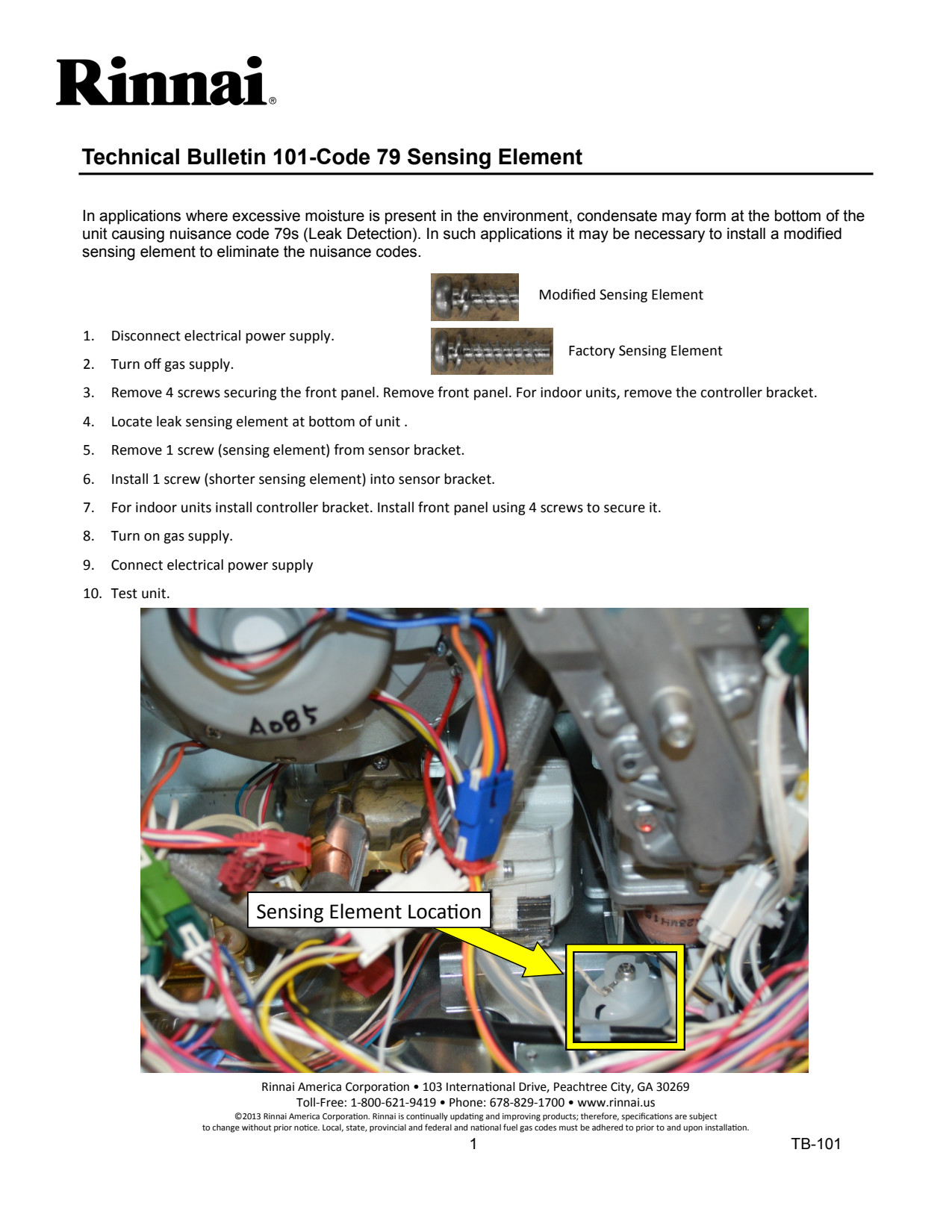

Tech Bulletin No 101: Code 79 Sensing Element (TB-101)PDF 576 KB
Tech Bulletin No 121: Activation Flow Rates at Higher Temperatures (TB-121)PDF 308 KB
Tech Bulletin No 130: Battery Backup for Tankless Water Heaters and Home Heating Products (TB-130)PDF 285 KB
Tech Bulletin No 150: Understanding EF and UEF (TB-150)PDF 197 KB
Tech Bulletin No 172: Rinnai Natural Gas-Hydrogen Fuel Mixture Products (TB-172)PDF 279 KB
MSDS Higher Vinegar Concentration for Descaling Technical BulletinsPDF 417 KB -

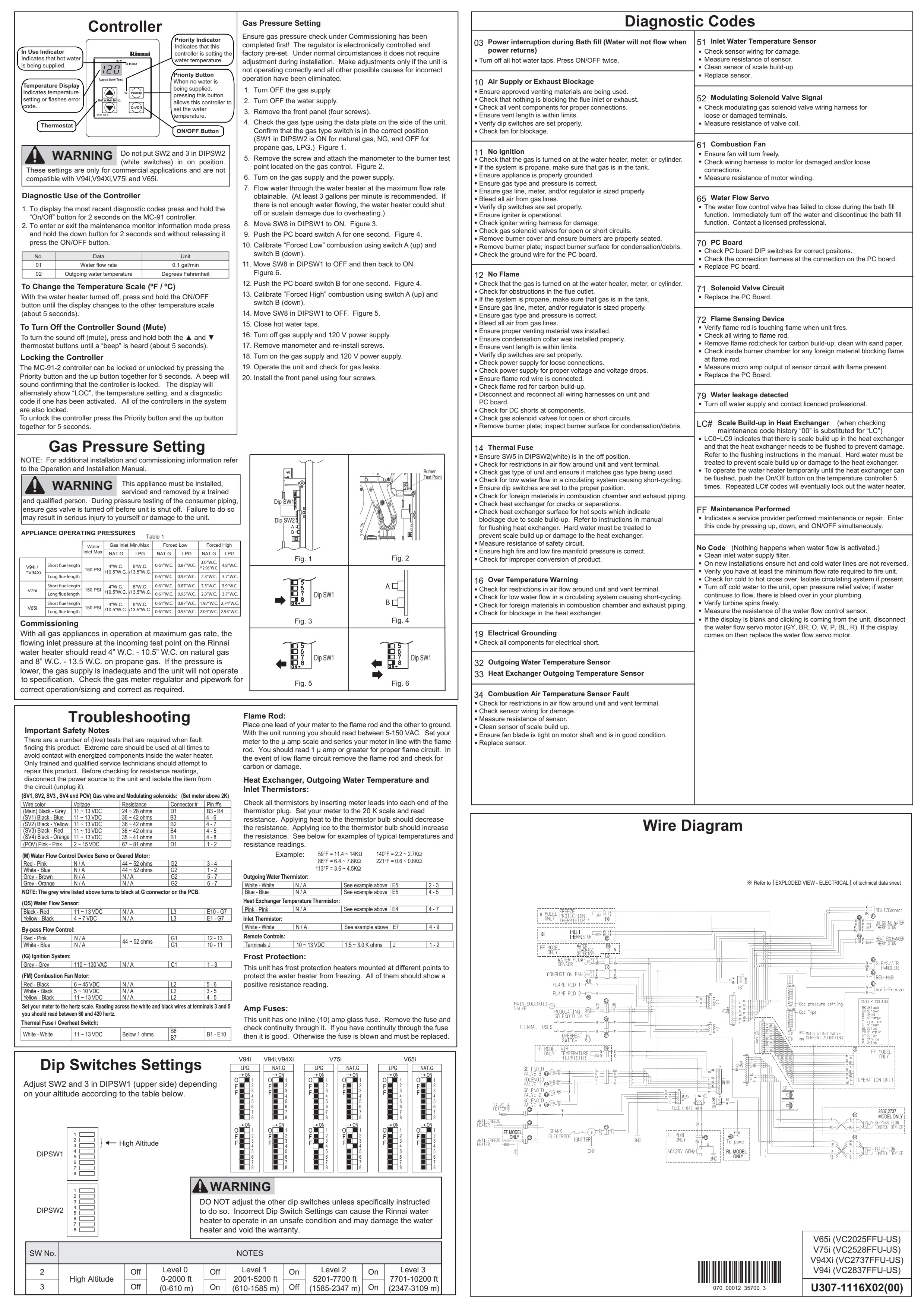

TWH Troubleshooting Technical Data SheetPDF 2 MB
Troubleshooting TWH Diagnostic Codes-FrenchPDF 2 MB
Troubleshooting TWH Diagnostic Codes-SpanishPDF 2 MB
Technical Data Sheet - V ModelsPDF 1 MB -
System Design Drawing: Rinnai Tankless Single Unit with Backup Storage (CAD format)DWG 320 KB
System Design Drawing: Rinnai Tankless Single Unit with Backup StoragePDF 803 KBSystem Design Drawing: Rinnai Tankless Single Unit with Demand Pump Circulation (CAD format)DWG 337 KB
System Design Drawing: Rinnai Tankless Single Unit with Demand Pump CirculationPDF 789 KBSystem Design Drawing: Rinnai Tankless Single Unit with Circulation (CAD format)DWG 403 KB
System Design Drawing: Rinnai Tankless Single Unit with CirculationPDF 718 KBSystem Design Drawing: Rinnai Tankless Two Unit with Backup Storage (CAD format)DWG 432 KB
System Design Drawing: Rinnai Tankless Two Unit with Backup StoragePDF 818 KBSystem Design Drawing: Rinnai Tankless Two Unit with Demand Pump Circulation (CAD format)DWG 689 KB
System Design Drawing: Rinnai Tankless Two Unit with Demand Pump CirculationPDF 723 KBSystem Design Drawing: Rinnai Tankless Two Unit with Circulation (CAD format)DWG 688 KB
System Design Drawing: Rinnai Tankless Two Unit with CirculationPDF 725 KBSystem Design Drawing: Rinnai Tankless Three Unit with Backup Storage (CAD format)DWG 544 KB
System Design Drawing: Rinnai Tankless Three Unit with Backup StoragePDF 833 KBSystem Design Drawing: Rinnai Tankless Three Unit with Demand Pump Circulation (CAD format)DWG 0 MB
System Design Drawing: Rinnai Tankless Three Unit with Demand Pump CirculationPDF 732 KBSystem Design Drawing: Rinnai Tankless Three Unit with Circulation (CAD format)DWG 902 KB
System Design Drawing: Rinnai Tankless Three Unit with CirculationPDF 733 KBSystem Design Drawing: Rinnai Tankless Single Unit with Air Handler (CAD format)DWG 435 KB
System Design Drawing: Rinnai Tankless Single Unit with Air HandlerPDF 719 KBSystem Design Drawing: Non-Condensing Tankless Single Unit with Freeze Protection (CAD format)DWG 247 KB
System Design Drawing: Non-Condensing Tankless Single Unit with Freeze ProtectionPDF 711 KBSystem Design Drawing: Rinnai Tankless Single Unit with Hydronic Heating via Plate Heat Exchanger (CAD format)DWG 419 KB
System Design Drawing: Rinnai Tankless Single Unit with Hydronic Heating via Plate Heat ExchangerPDF 718 KBSystem Design Drawing: Rinnai Tankless Single Unit with Solar Backup Option 1 (CAD format)DWG 427 KB
System Design Drawing: Rinnai Tankless Single Unit with Solar Backup Option 1PDF 727 KBSystem Design Drawing: Rinnai Tankless Single Unit with Solar Backup Option 2 (CAD format)DWG 447 KB
System Design Drawing: Rinnai Tankless Single Unit with Solar Backup Option 2PDF 725 KBSystem Design Drawing: Rinnai Tankless Single Unit with Hydronic Heating (CAD format)DWG 423 KB
System Design Drawing: Rinnai Tankless Single Unit with Hydronic HeatingPDF 720 KBSystem Design Drawing: Non-Condensing Tankless Two Unit with Freeze Protection (CAD format)DWG 386 KB
System Design Drawing: Non-Condensing Tankless Two Unit with Freeze ProtectionPDF 718 KBSystem Design Drawing: Rinnai Tankless Two Unit with Solar Backup Option 1 (CAD format)DWG 766 KB
System Design Drawing: Rinnai Tankless Two Unit with Solar Backup Option 1PDF 736 KBSystem Design Drawing: Rinnai Tankless Two Unit with Solar Backup Option 2 (CAD format)DWG 748 KB
System Design Drawing: Rinnai Tankless Two Unit with Solar Backup Option 2PDF 732 KBSystem Design Drawing: Non-Condensing Tankless Three Unit with Freeze Protection (CAD format)DWG 524 KB
System Design Drawing: Non-Condensing Tankless Three Unit with Freeze ProtectionPDF 731 KBSystem Design Drawing: Rinnai Tankless Three Unit with Solar Backup Option 1 (CAD format)DWG 1 MB
System Design Drawing: Rinnai Tankless Three Unit with Solar Backup Option 1PDF 741 KBSystem Design Drawing: Rinnai Tankless Three Unit with Solar Backup Option 2 (CAD format)DWG 1 MB
System Design Drawing: Rinnai Tankless Three Unit with Solar Backup Option 2PDF 742 KB -
Warranty Value (HE Series)PDF 337 KB
iWarranty information is available in the Installation & Owner Manual.
