M120CN M-Series Model Series
Select a thumbnail to view a larger version

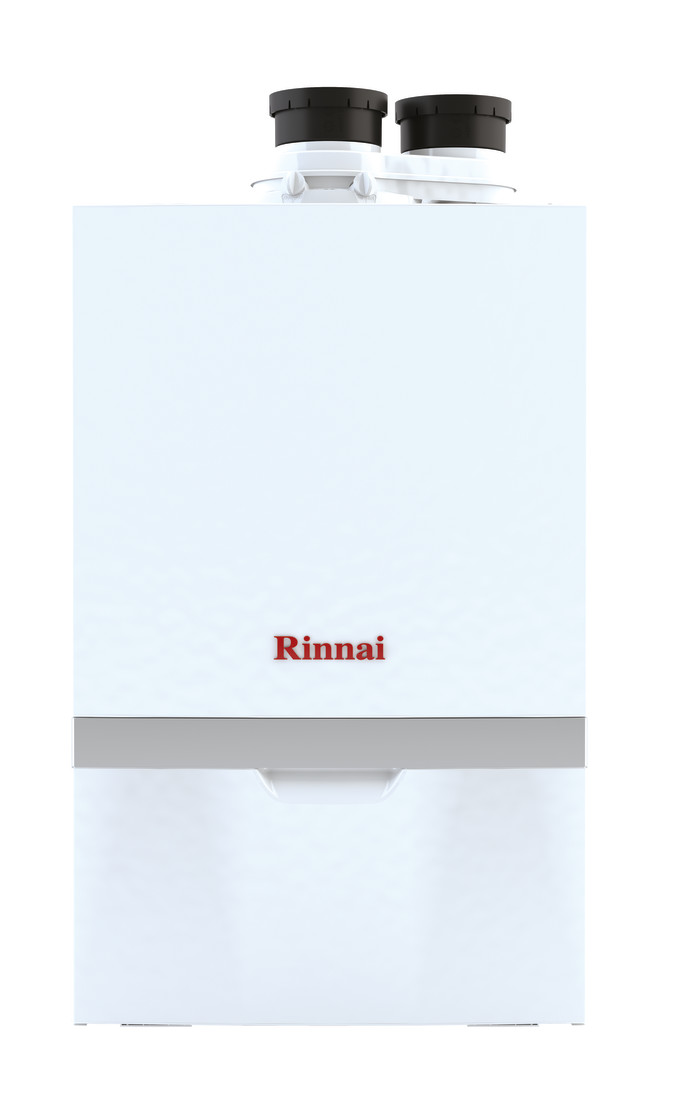

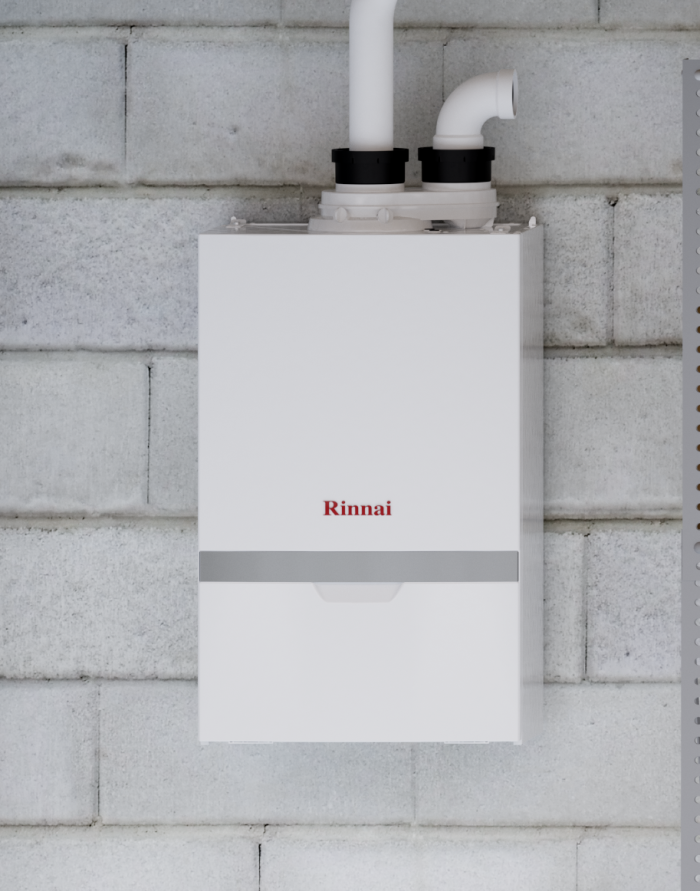

Rinnai M120CN residential condensing combination, natural gas boiler is compact, wall mounted, designed for easy installation as a retro-fit to traditional less efficient boilers, and can deliver whole house heating and domestic hot water heating for homes with up to three bathrooms.
- Warranty 12 yrs on Heat Exchanger/ 2 years on Parts/ 1 Year on Labor
- NG:23,500 BTU / (6.7 kW)
LP: 73,500 BTU / (21.5 kW) (minimum)
160,000 BTU / (46.9 kW) (maximum)
Specifications
| Manufacturer Trade Model Number - U.S. | M120CN |
|---|---|
| Product Depth | 10.46 in / (266 mm) |
| Product Height | 31.8 in / (808 mm) |
| Product Width | 17.3 in / (440 mm) |
| Product Weight | 84 lb / (38 kg) |
| Gas Type | NG | LP |
| Residential ENERGY STAR® | Yes |
| Domestic Hot Water Flow Rate (Maximum) | 4.2 GPM / (15.9 l/min) |
| SCAQMD Approved | Low NOx |
| Central Heating Capacity | 120,000 BTU / (35.2 kW) |
Documentation
-

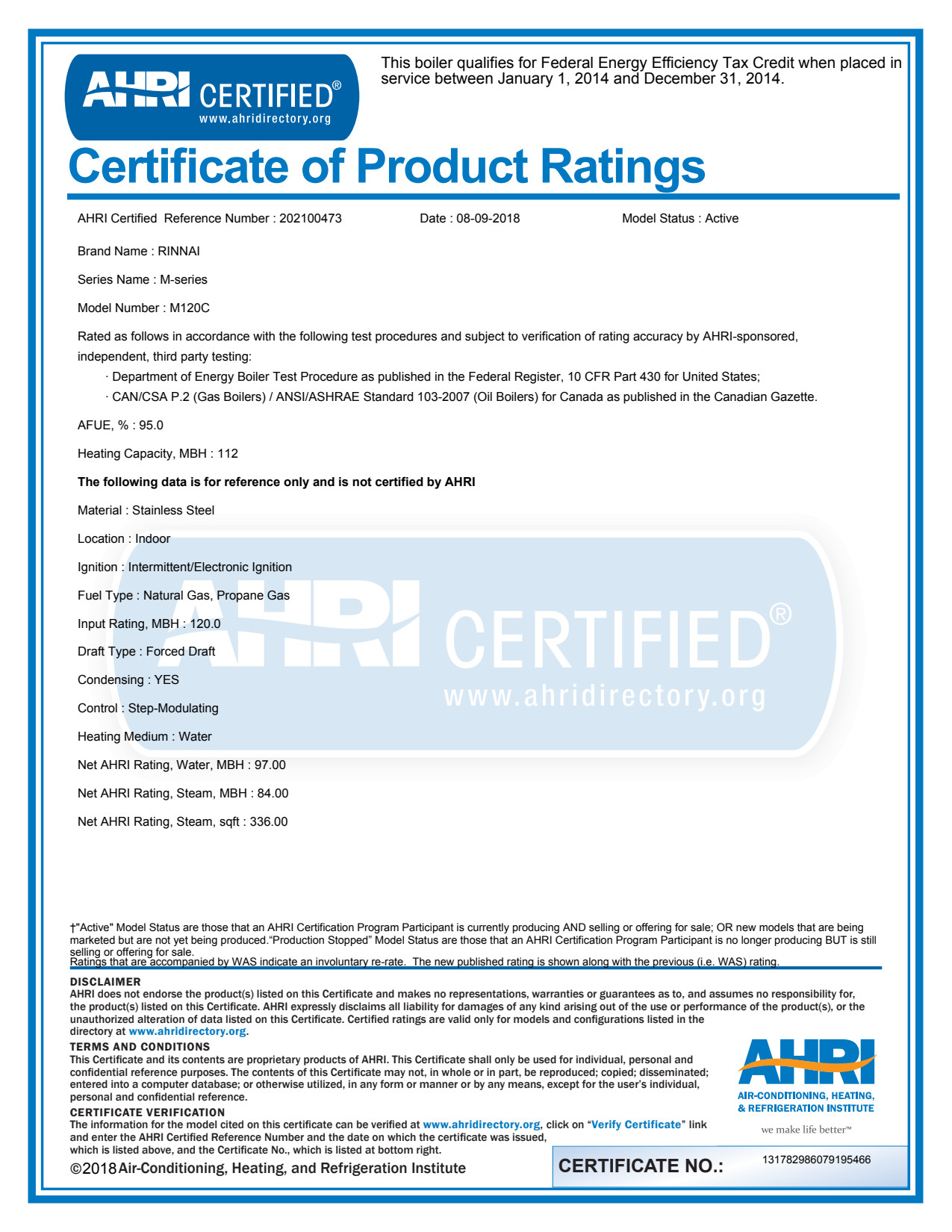

AHRICertificate-M120CPDF 142 KB -
VERSION 5 UBBINK INSTRUCTIONS FOR FLEX VENT KITPDF 2 MB -

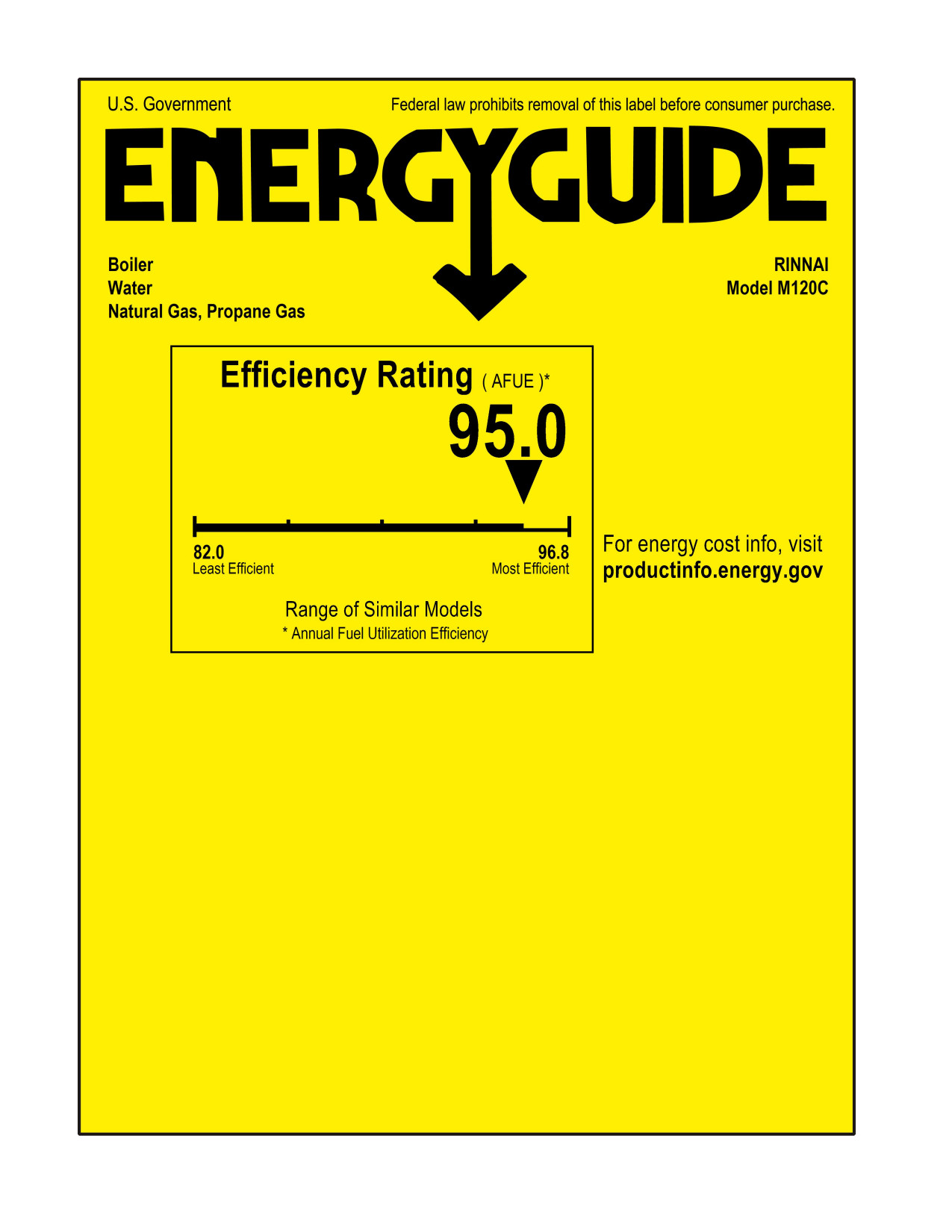

Energy Guide - M120CPDF 593 KB -
_191204 Rinnai USA Manual 2-4 Condensing English@small.jpg)
Condensing Installation Manual - RU/RSC/CU/RURPDF 2 MB SP-M-Series Condensing Combi Boiler Installation and Operation Manual_Sp@small.jpg)

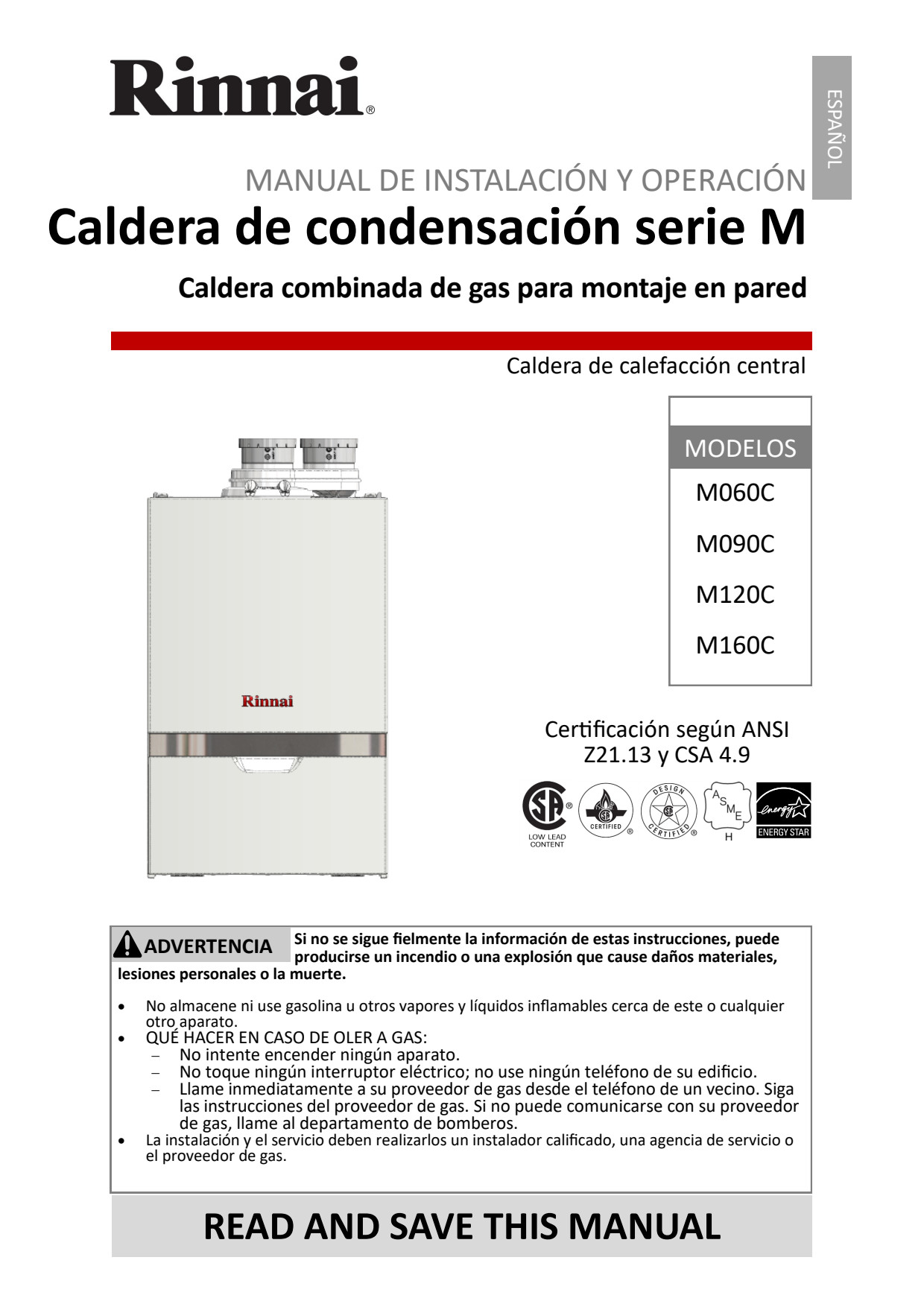

Installation Manual: M-Series Combi Boiler (Spanish)PDF 12 MB-Fr-M-Series Condensing Combi Boiler Installation and Operation Manual_Fr@small.jpg)

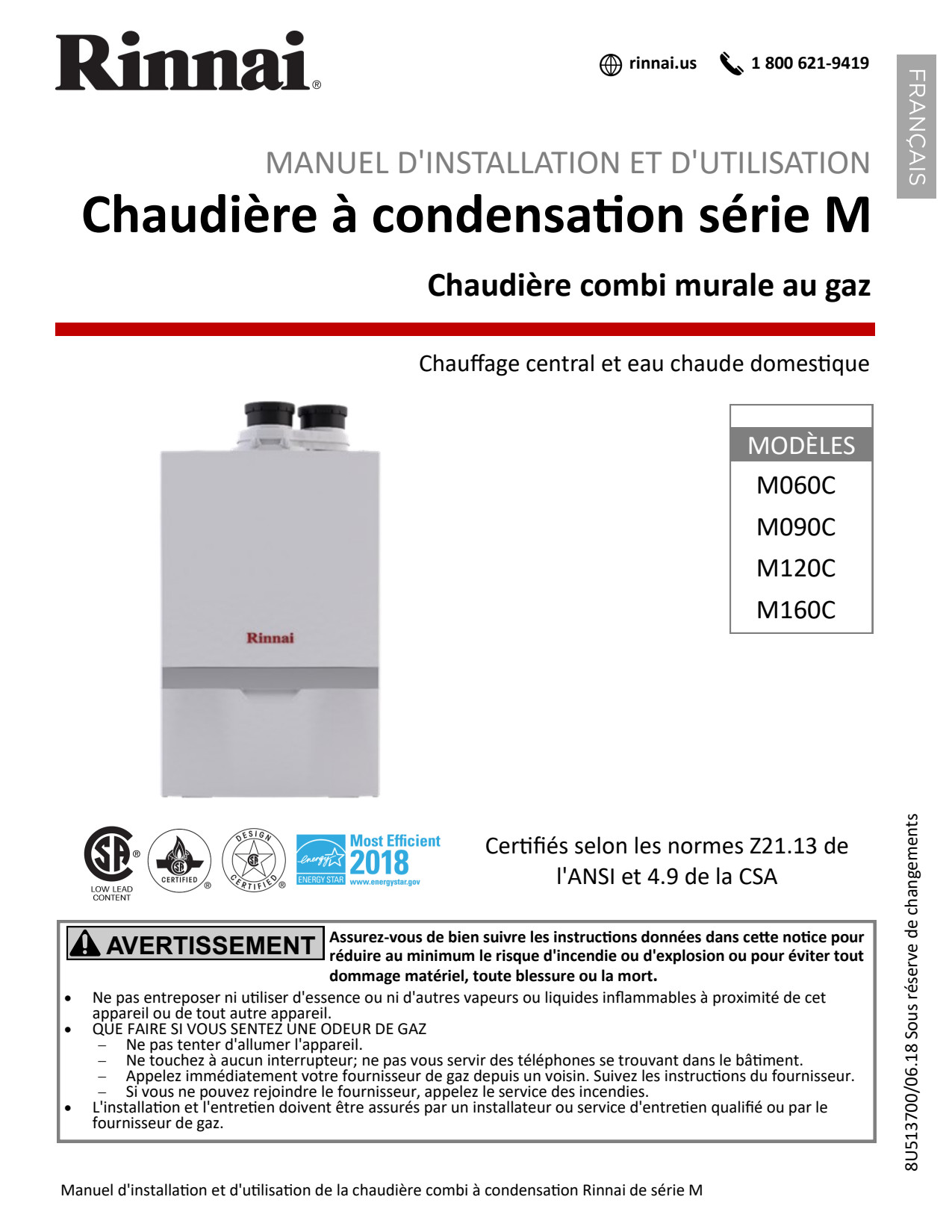

Installation Manual: M-Series Combi Boiler (French)PDF 8 MB-M-Series Condensing Combi Boiler Installation and Operation Manual@small.jpg)

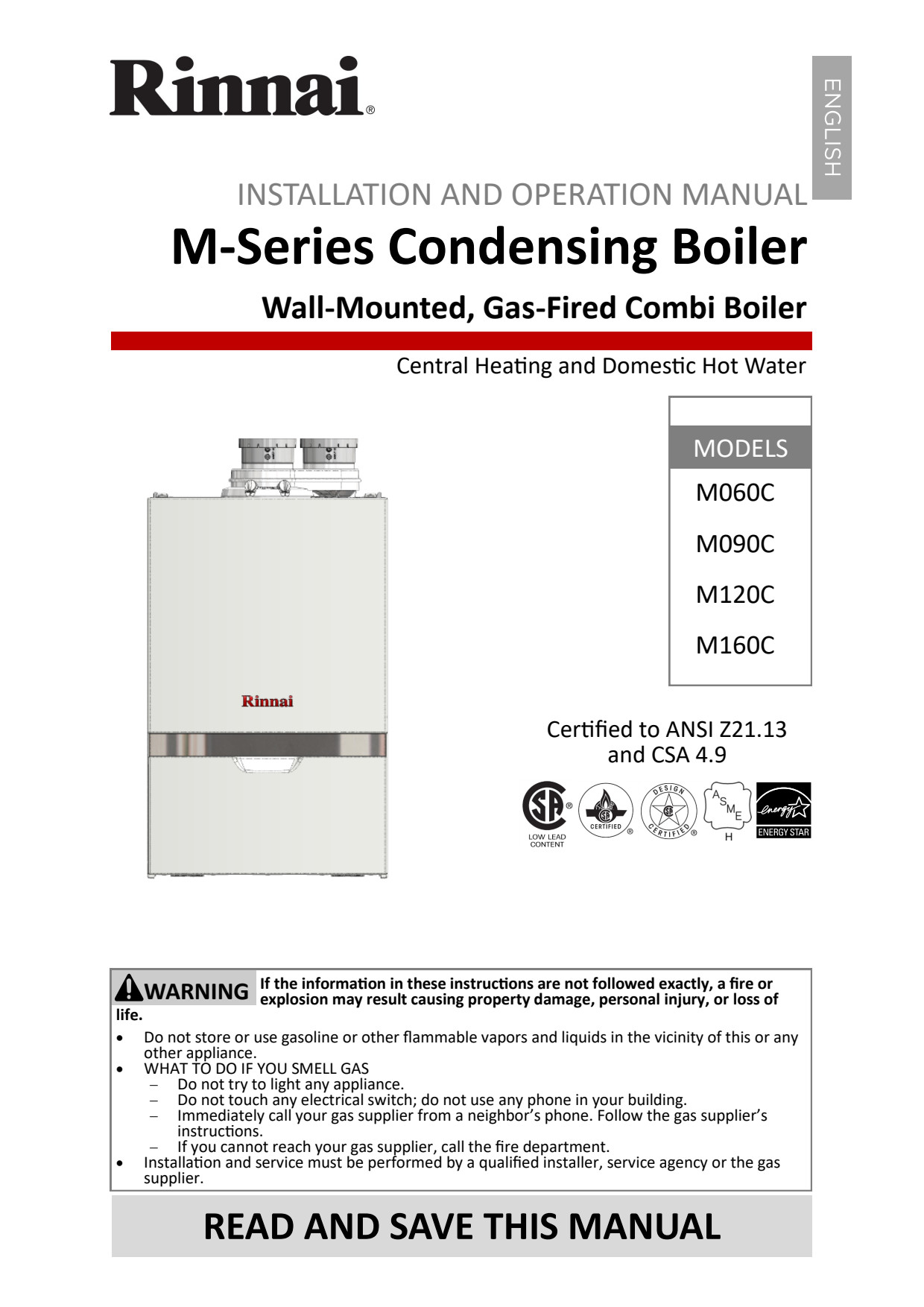

Installation Manual: M-Series Combi Boiler (English)PDF 11 MB
User Manual: M-Series Boiler (Spanish)PDF 11 MB
User Manual: M-Series Boiler (French)PDF 1 MB
User Manual: M-Series Boiler (English)PDF 1 MB SP-M-Series Condensing Solo Boiler Installation and Operation Manual_Sp@small.jpg)
Installation Manual: M-Series Solo Boiler (Spanish)PDF 11 MB -
Rinnai_MSeries_Brochure_R-TR-WH-E-08r3.pdfPDF 2 MB
Rinnai_MSeries_Handout_R-TR-HT-E_09.pdfPDF 940 KB -
Venting Spec Sheet: IPEX System 636 PVC/CPVC Termination KitsPDF 453 KB

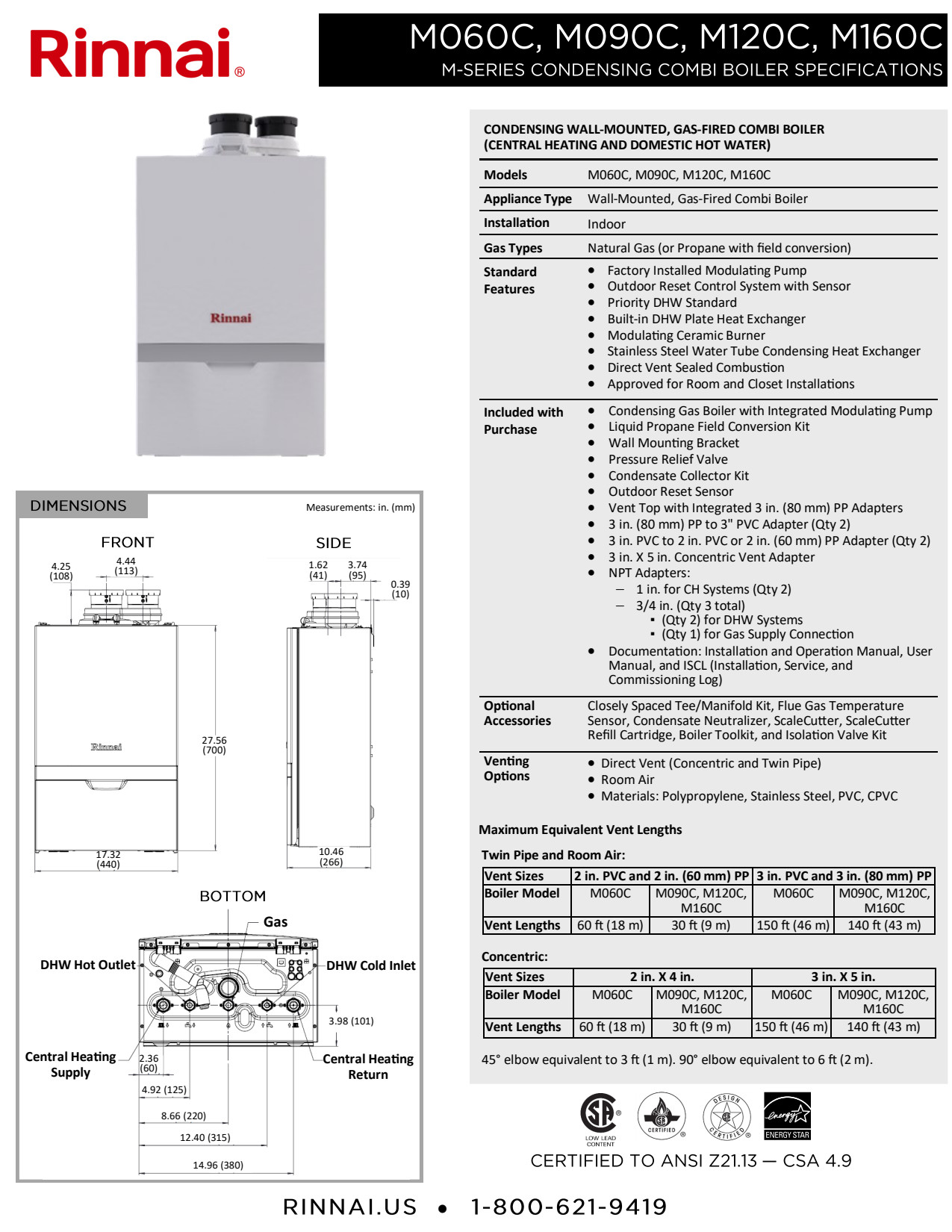

Spec Sheet: M-Series Combi BoilerPDF 575 KB
Spec Sheet: M-Series Plumbing KitPDF 372 KB -
Tech Bulletin No 145: ECCO Venting for M-Series Boilers (TB-145)PDF 204 KB
Tech Bulletin No 151: Flex Venting for M-Series Boilers (TB-151)PDF 513 KB
Tech Bulletin No 152: Updated O2 Settings for M-Series Boilers (TB-152)PDF 234 KB
Z-Flex Venting for BoilersPDF 202 KB
Tech Bulletin No 157: Hydraulic Separation Required for Rinnai Boilers (TB-157)PDF 582 KB
Tech Bulletin No 165: New Clearances for Twin Pipe Venting Systems (TB-165)PDF 308 KB -
M-Series System Application DrawingsPDF 6 MB
Warrantyi
| Warranty - Standard for Residential | 12 yrs on Heat Exchanger/ 2 years on Parts/ 1 Year on Labor |
|---|---|
| Warranty - Standard for Commercial | 5 yrs on Heat Exchanger/ 2 years on Parts/ 1 Year on Labor |
iWarranty information is available in the Installation & Owner Manual.
