M060CN M-Series Model Series
Rinnai M060CN residential condensing combination, natural gas boiler is compact, wall mounted, designed for easy installation as a retro-fit to traditional less efficient boilers, and can deliver whole house heating and domestic hot water heating for homes with up to three bathrooms.
- Warranty 12 yr / 2 yr / 1 yr
- NG: 17,000 BTU / (4.5 kW)
LP: 31,500 BTU / (9.2 kW) (minimum)
103,000 BTU / (30.2 kW) (maximum)
- Indoor Only
Specifications
| Manufacturer Trade Model Number - U.S. | M060CN |
|---|---|
| Product Depth | 10.46 in / (266 mm) |
| Product Height | 31.8 in / (808 mm) |
| Product Width | 17.3 in / (440 mm) |
| Product Weight | 77 lb / (35 kg) |
| Gas Type | NG | LP |
| Installation Type | Indoor Only |
| Residential ENERGY STAR® | Yes |
| Domestic Hot Water Flow Rate (Maximum) | 2.6 GPM / (9.8 l/min) |
| SCAQMD Approved | Ultra Low NOx |
| Central Heating Capacity | 60,000 BTU / (17.6 kW) |
Documentation
-
Spec Sheet: M-Series Combi BoilerPDF 575KB
Spec Sheet: M-Series Plumbing KitPDF 372KB
Venting Spec Sheet: IPEX System 636 PVC/CPVC Termination KitsPDF 453KB -
-M-Series Condensing Combi Boiler Installation and Operation Manual@small.jpg)
Installation Manual: M-Series Combi Boiler (English)PDF 11MB-Fr-M-Series Condensing Combi Boiler Installation and Operation Manual_Fr@small.jpg)
Installation Manual: M-Series Combi Boiler (French)PDF 8MB SP-M-Series Condensing Combi Boiler Installation and Operation Manual_Sp@small.jpg)
Installation Manual: M-Series Combi Boiler (Spanish)PDF 12MB SP-M-Series Condensing Solo Boiler Installation and Operation Manual_Sp@small.jpg)
Installation Manual: M-Series Solo Boiler (Spanish)PDF 11MB
User Manual: M-Series Boiler (English)PDF 1MB
User Manual: M-Series Boiler (French)PDF 1MB
User Manual: M-Series Boiler (Spanish)PDF 11MB -
Rinnai_Heating_Trade_Brochure_R-TR-HT-E-01r5.pdfPDF 767KB
Rinnai_MSeries_Brochure_R-TR-WH-E-08r3.pdfPDF 2MB
Rinnai_MSeries_Handout_R-TR-HT-E_09.pdfPDF 940KB -
Tech Bulletin No 145: ECCO Venting for M-Series Boilers (TB-145)PDF 204KB
Tech Bulletin No 151: Flex Venting for M-Series Boilers (TB-151)PDF 513KB
Tech Bulletin No 152: Updated O2 Settings for M-Series Boilers (TB-152)PDF 234KB
Tech Bulletin No 155: Z-Flex Venting for Boilers (TB-155)PDF 202KB
Tech Bulletin No 157: Hydraulic Separation Required for Rinnai Boilers (TB-157)PDF 582KB
Tech Bulletin No 165: New Clearances for Twin Pipe Venting Systems (TB-165)PDF 308KB -
M-Series System Application DrawingsPDF 6MB -

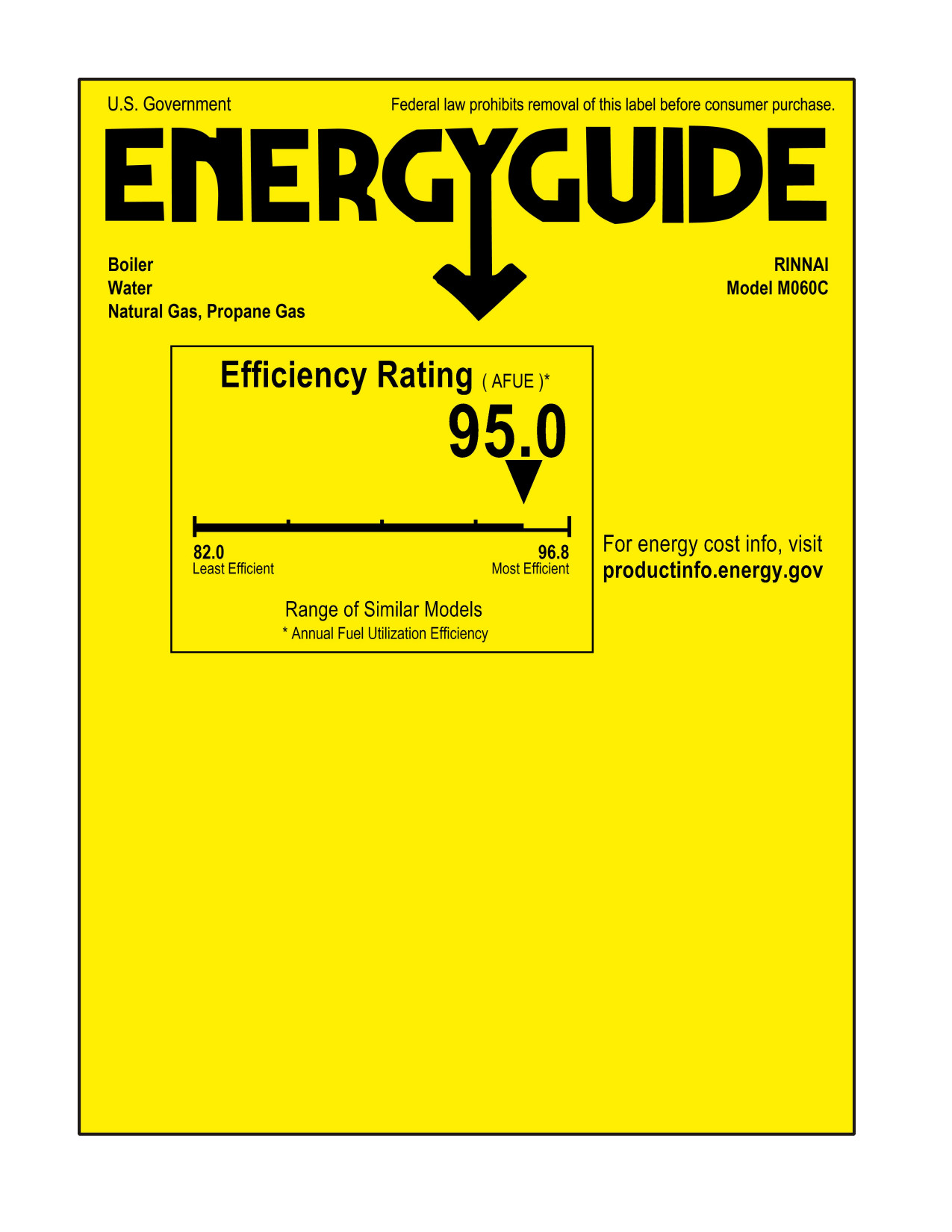

Energy Guide - M060CPDF 593KB -

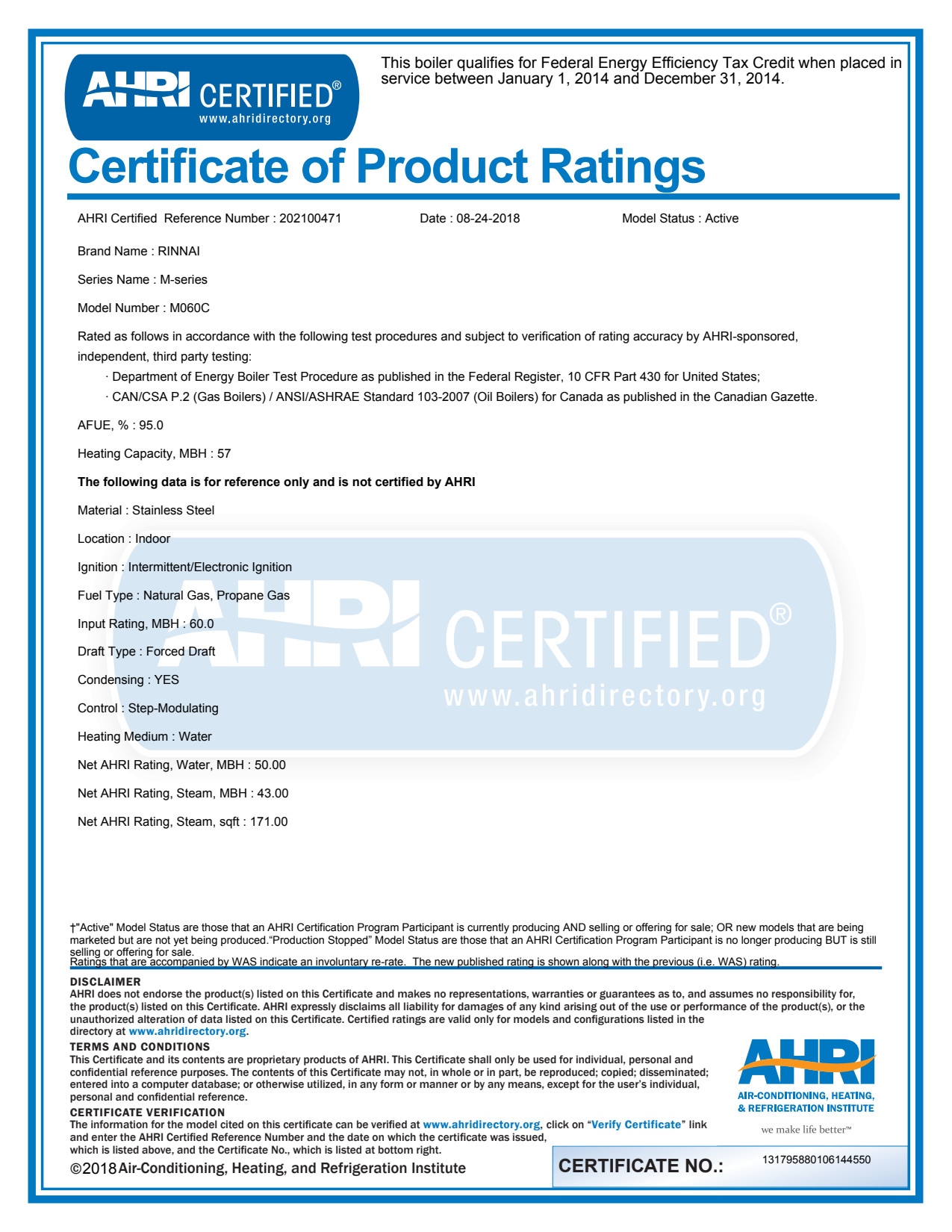

AHRICertificate-M060CPDF 142KB
Warranty
| Warranty- Commercial Standard (Hex/ Parts/ Labor) | 5 yr / 2 yr / 1 yr |
|---|---|
| Warranty-Residential Standard (HEX / Parts / Labor) | 12 yr / 2 yr / 1 yr |
