V53DeP V Model Series
Select a thumbnail to view a larger version

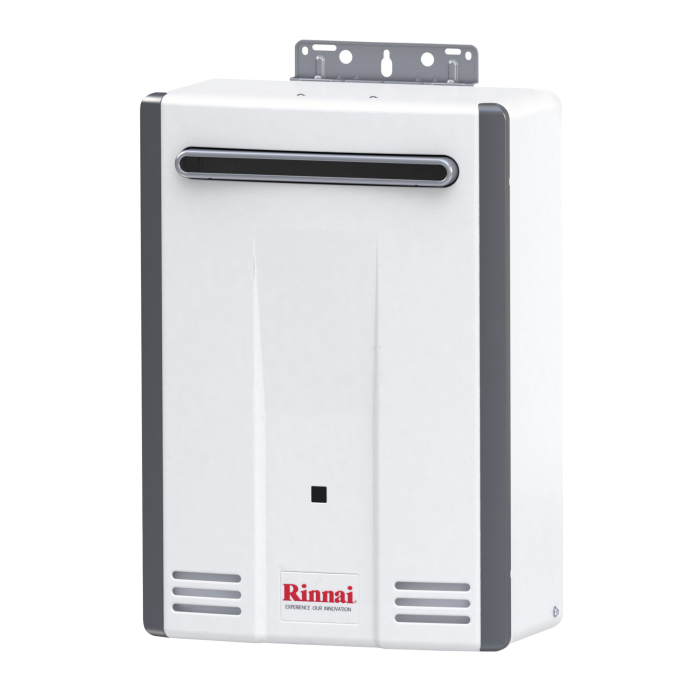

V53DeP is the perfect combination of high efficiency, comfort and value in a propane gas tankless water heater from Rinnai. Ideal for small to medium homes or remodels, compact, easy-to-install, reliable and perfect for outdoor locations; Rinnai products provide peace of mind with warranties that surpass the competition.
- Uniform Energy Factor (UEF): 0.81
- Warranty 10 yrs on Heat Exchanger/ 5 years on Parts/ 1 Year on Labor
- 15,500 BTU (minimum)
120,000 BTU (maximum) - Outdoor
-
Up to twice the lifespan of most tanks
-
Never run out of hot water
-
Compact size to fit every space
Specifications
| Manufacturer Trade Model Number - U.S. | V53DeP |
|---|---|
| Product Depth | 7.9 in / (202 mm) |
| Product Height | 21.8 in / (553 mm) |
| Product Width | 14.0 in / (356 mm) |
| Product Weight | 29.7 lb / (13.5 kg) |
| Gas Type | Propane |
| Installation Type | Outdoor |
| Uniform Energy Factor (UEF) | 0.81 |
| Domestic Hot Water Flow Rate (Maximum) | 5.3 GPM / (20.1 l/min) |
| Wi-Fi Capable | Yes |
| SCAQMD Approved | Ultra Low NOx |
Documentation
-
PDF 887 KB -

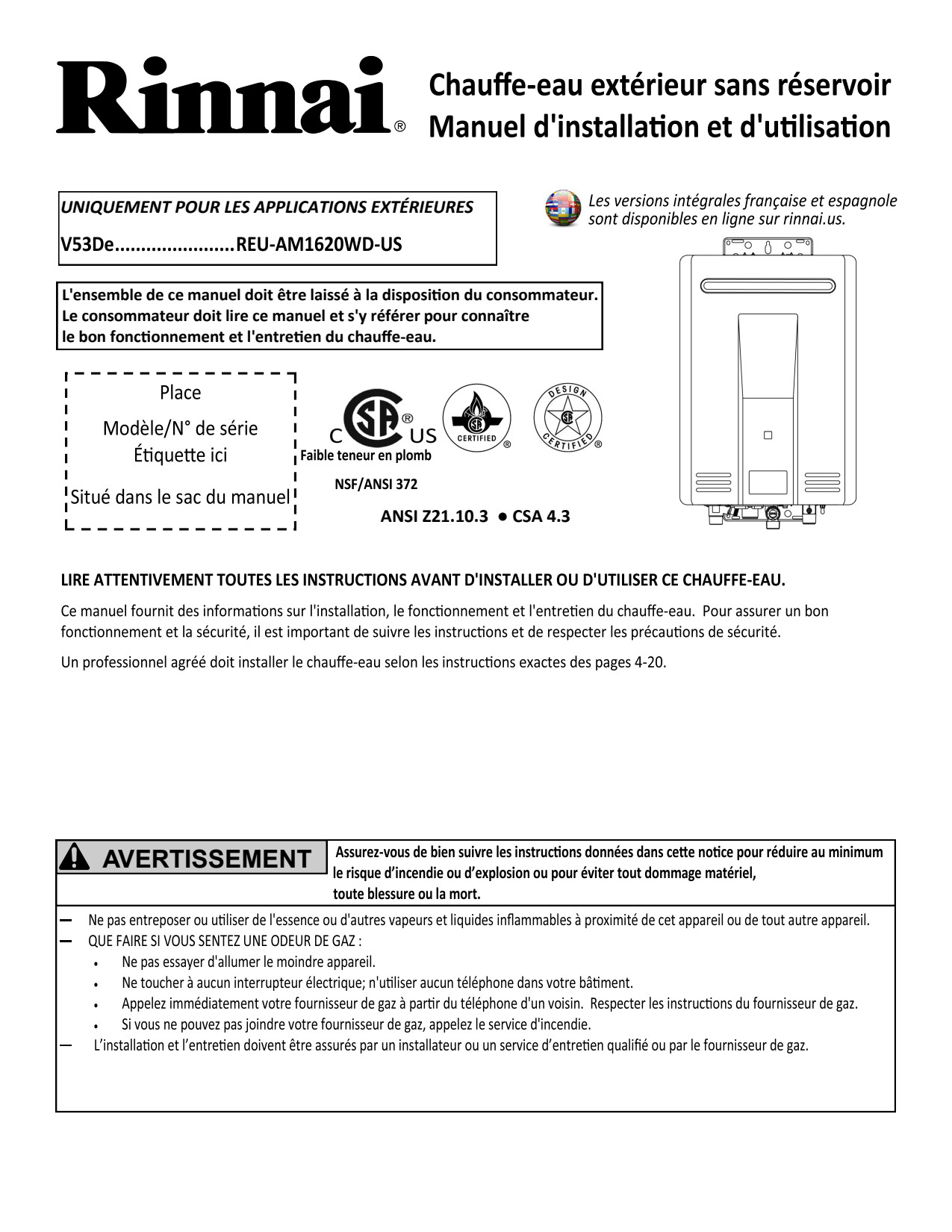

Installation Manual: Tankless Water Heater - V53De (French)PDF 38 MB

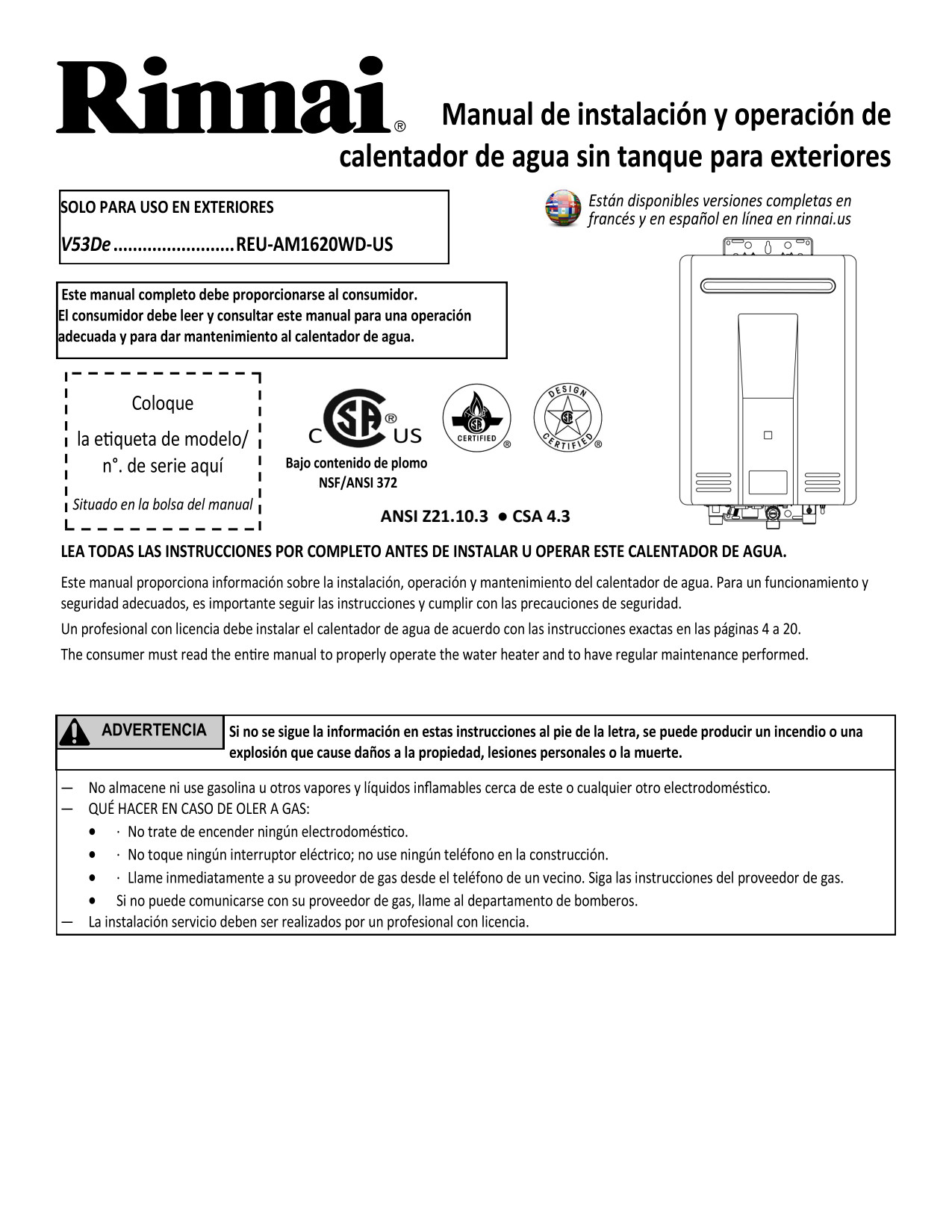

Installation Manual: Tankless Water Heater - V53De (Spanish)PDF 36 MB

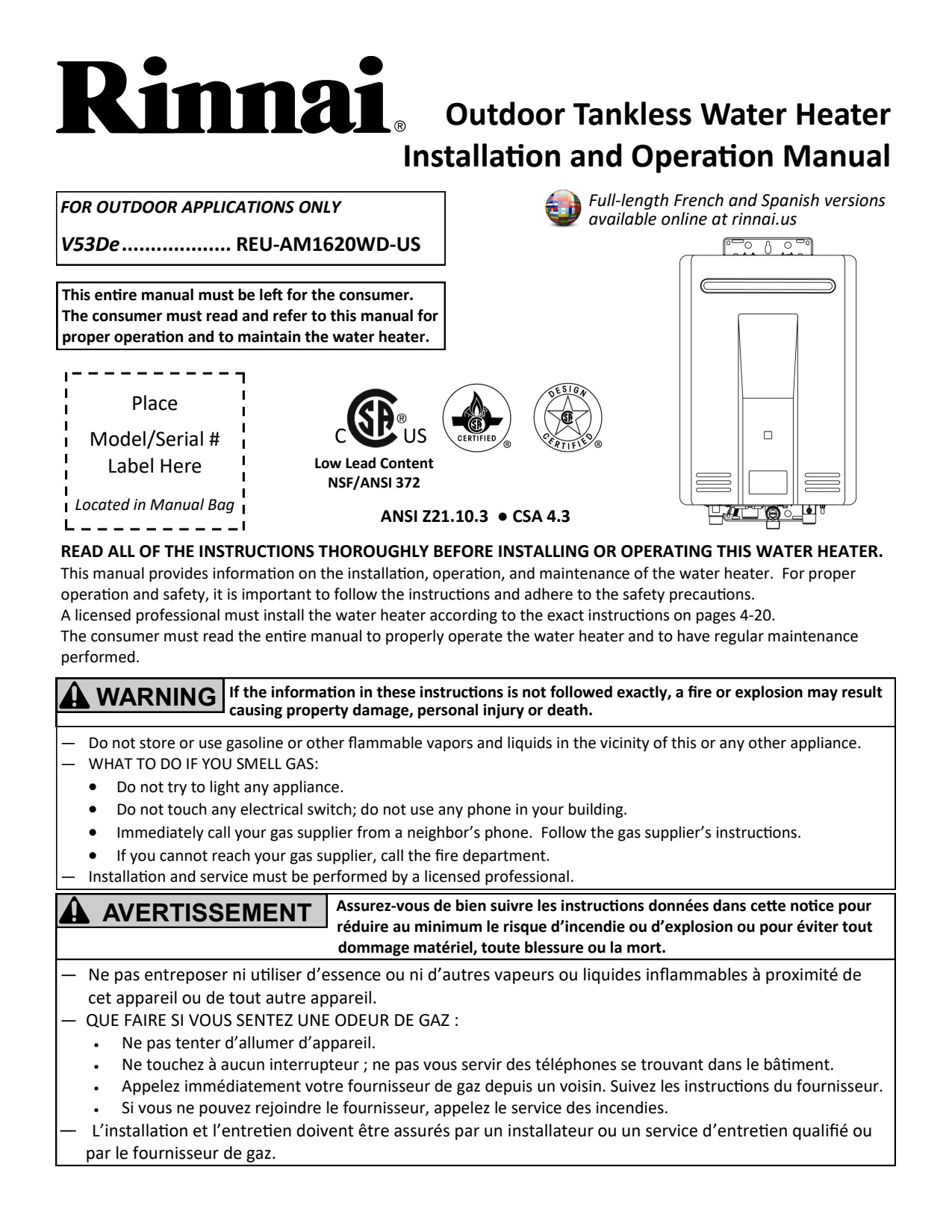

Installation Manual: Tankless Water Heater - V53De (English)PDF 3 MB

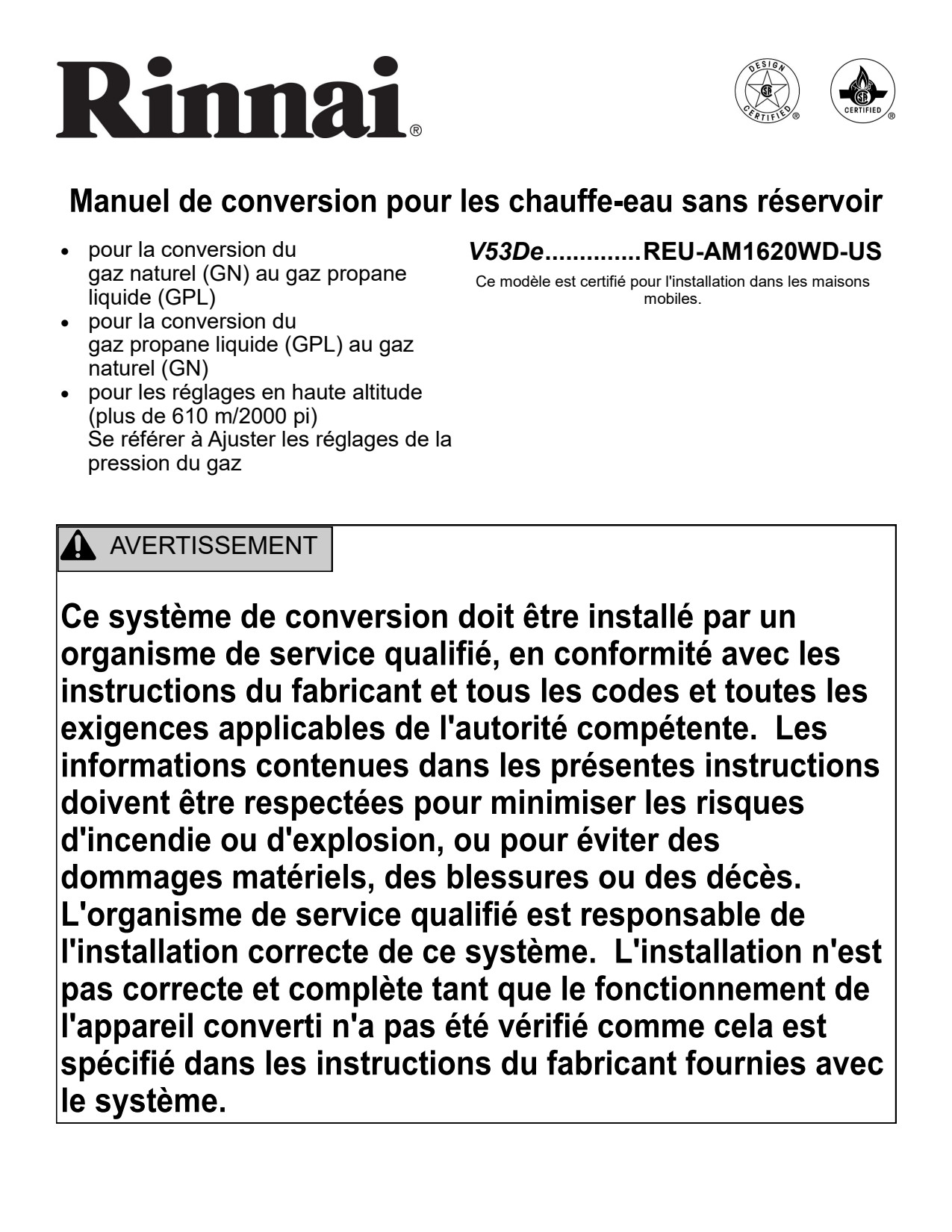

Service Manual: V53De Gas Conversion (French)PDF 2 MB

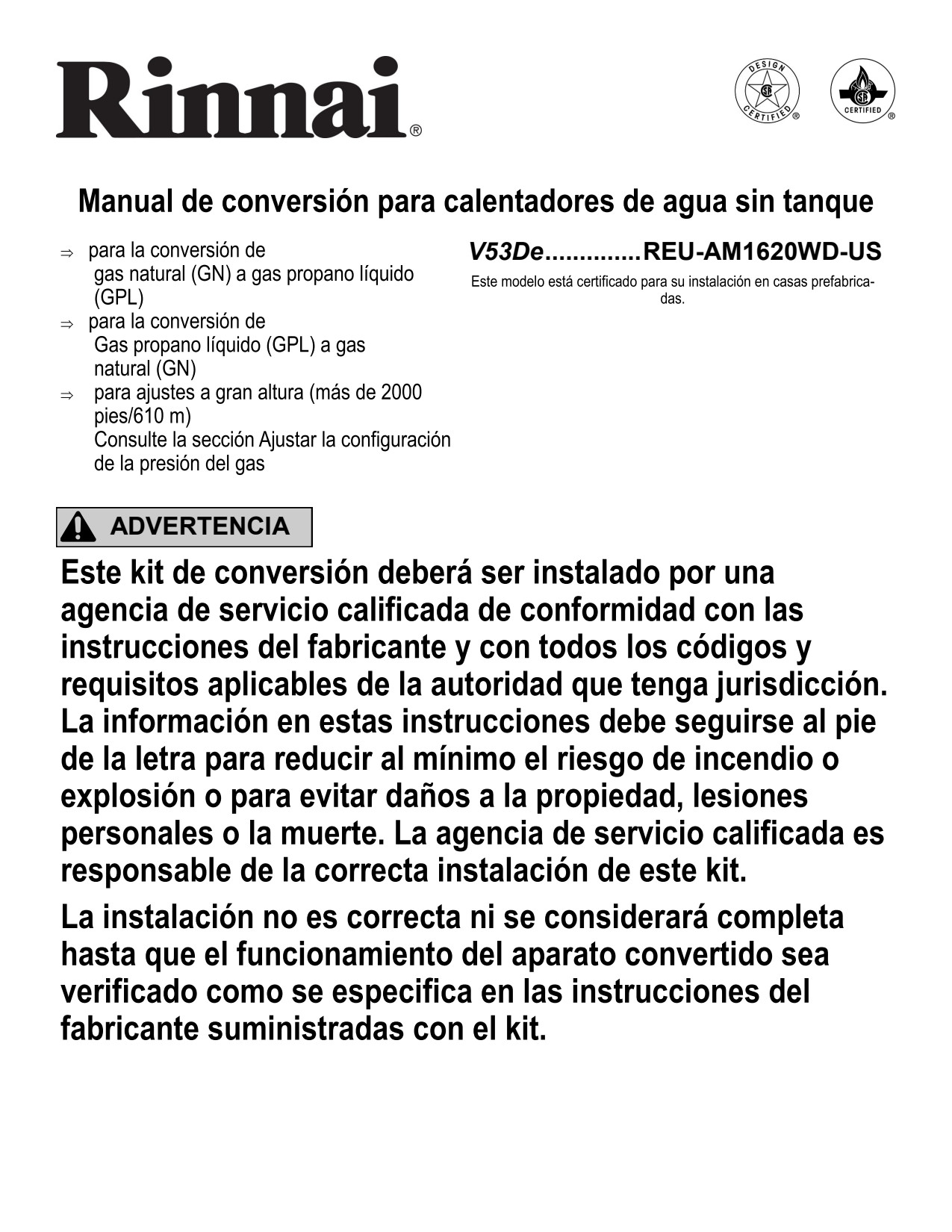

Service Manual: V53De Gas Conversion (Spanish)PDF 3 MB
Service Manual: V53De Gas Conversion (English)PDF 1 MB
Venting Manual: Ubbink Non-Condensing ConcentricPDF 4 MB -
PDF 304 KB -

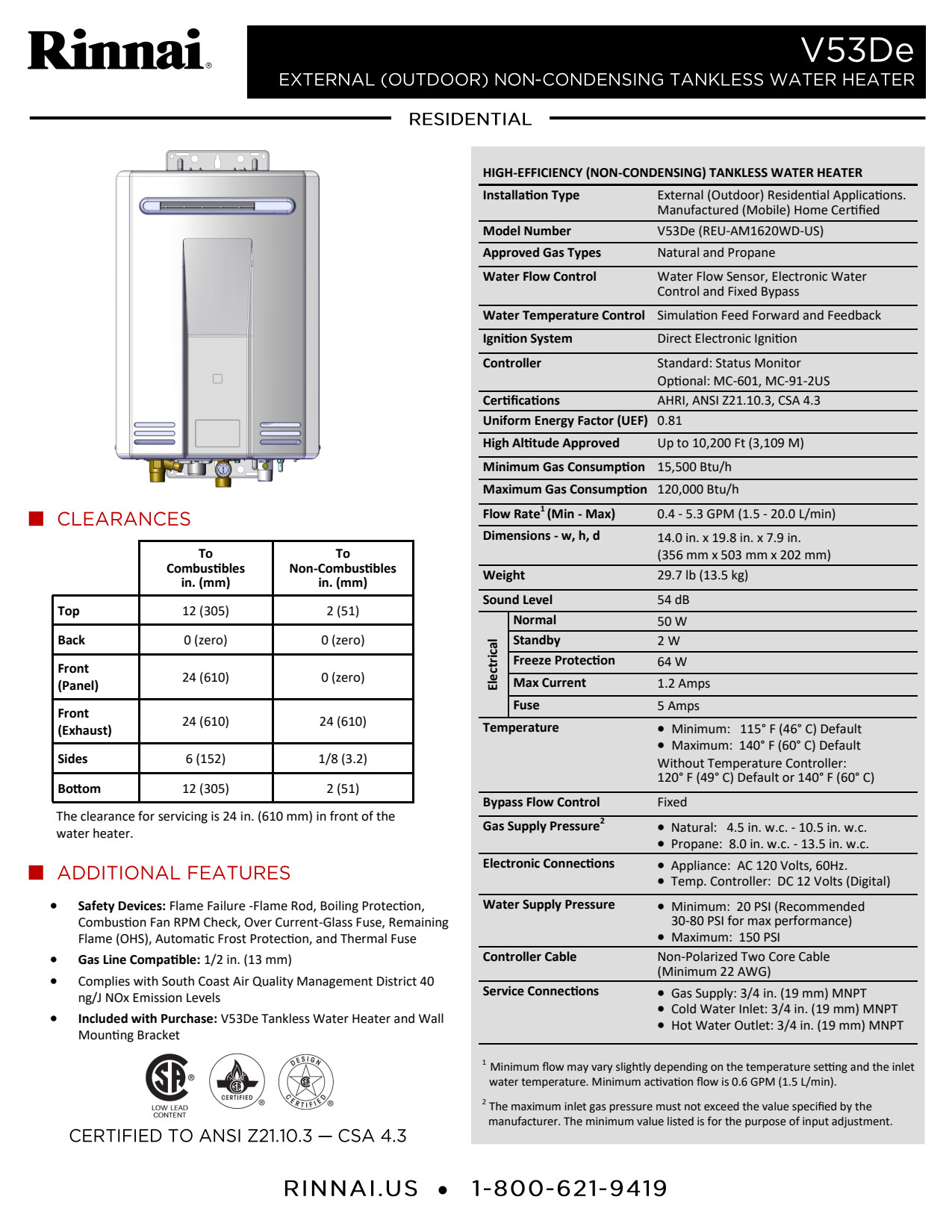

Spec Sheet: Value Series Tankless Water Heater- V53DePDF 537 KB -
Tech Bulletin No 150: Understanding EF and UEF (TB-150)PDF 197 KB
Tech Bulletin No 172: Rinnai Natural Gas-Hydrogen Fuel Mixture Products (TB-172)PDF 279 KB -
@small.jpg)
Troubleshooting Technical Data Sheet - RE/REP/RSC/CU/RURPDF 2 MB -
System Design Drawing: Rinnai Tankless Single Unit with Backup Storage (CAD format)DWG 320 KB
System Design Drawing: Rinnai Tankless Single Unit with Backup StoragePDF 803 KB
System Design Drawing: Rinnai Tankless Single Unit with Demand Pump Circulation (CAD format)DWG 337 KB
System Design Drawing: Rinnai Tankless Single Unit with Demand Pump CirculationPDF 789 KB
System Design Drawing: Rinnai Tankless Single Unit with Circulation (CAD format)DWG 403 KB
System Design Drawing: Rinnai Tankless Single Unit with CirculationPDF 718 KB
System Design Drawing: Rinnai Tankless Two Unit with Backup Storage (CAD format)DWG 432 KB
System Design Drawing: Rinnai Tankless Two Unit with Backup StoragePDF 818 KB
System Design Drawing: Rinnai Tankless Two Unit with Demand Pump Circulation (CAD format)DWG 689 KB
System Design Drawing: Rinnai Tankless Two Unit with Demand Pump CirculationPDF 723 KB
System Design Drawing: Rinnai Tankless Two Unit with Circulation (CAD format)DWG 688 KB
System Design Drawing: Rinnai Tankless Two Unit with CirculationPDF 725 KB
System Design Drawing: Rinnai Tankless Three Unit with Backup Storage (CAD format)DWG 544 KB
System Design Drawing: Rinnai Tankless Three Unit with Backup StoragePDF 833 KB
System Design Drawing: Rinnai Tankless Three Unit with Demand Pump Circulation (CAD format)DWG 0 MB
System Design Drawing: Rinnai Tankless Three Unit with Demand Pump CirculationPDF 732 KB
System Design Drawing: Rinnai Tankless Three Unit with Circulation (CAD format)DWG 902 KB
System Design Drawing: Rinnai Tankless Three Unit with CirculationPDF 733 KB
System Design Drawing: Rinnai Tankless Single Unit with Air Handler (CAD format)DWG 435 KB
System Design Drawing: Rinnai Tankless Single Unit with Air HandlerPDF 719 KB
System Design Drawing: Non-Condensing Tankless Single Unit with Freeze Protection (CAD format)DWG 247 KB
System Design Drawing: Non-Condensing Tankless Single Unit with Freeze ProtectionPDF 711 KB
System Design Drawing: Rinnai Tankless Single Unit with Hydronic Heating via Plate Heat Exchanger (CAD format)DWG 419 KB
System Design Drawing: Rinnai Tankless Single Unit with Hydronic Heating via Plate Heat ExchangerPDF 718 KB
System Design Drawing: Rinnai Tankless Single Unit with Solar Backup Option 1 (CAD format)DWG 427 KB
System Design Drawing: Rinnai Tankless Single Unit with Solar Backup Option 1PDF 727 KB
System Design Drawing: Rinnai Tankless Single Unit with Solar Backup Option 2 (CAD format)DWG 447 KB
System Design Drawing: Rinnai Tankless Single Unit with Solar Backup Option 2PDF 725 KB
System Design Drawing: Rinnai Tankless Single Unit with Hydronic Heating (CAD format)DWG 423 KB
System Design Drawing: Rinnai Tankless Single Unit with Hydronic HeatingPDF 720 KB
System Design Drawing: Non-Condensing Tankless Two Unit with Freeze Protection (CAD format)DWG 386 KB
System Design Drawing: Non-Condensing Tankless Two Unit with Freeze ProtectionPDF 718 KB
System Design Drawing: Rinnai Tankless Two Unit with Solar Backup Option 1 (CAD format)DWG 766 KB
System Design Drawing: Rinnai Tankless Two Unit with Solar Backup Option 1PDF 736 KB
System Design Drawing: Rinnai Tankless Two Unit with Solar Backup Option 2 (CAD format)DWG 748 KB
System Design Drawing: Rinnai Tankless Two Unit with Solar Backup Option 2PDF 732 KB
System Design Drawing: Non-Condensing Tankless Three Unit with Freeze Protection (CAD format)DWG 524 KB
System Design Drawing: Non-Condensing Tankless Three Unit with Freeze ProtectionPDF 731 KB
System Design Drawing: Rinnai Tankless Three Unit with Solar Backup Option 1 (CAD format)DWG 1 MB
System Design Drawing: Rinnai Tankless Three Unit with Solar Backup Option 1PDF 741 KB
System Design Drawing: Rinnai Tankless Three Unit with Solar Backup Option 2 (CAD format)DWG 1 MB
System Design Drawing: Rinnai Tankless Three Unit with Solar Backup Option 2PDF 742 KB
Warrantyi
| Warranty - Standard for Residential | 10 yrs on Heat Exchanger/ 5 years on Parts/ 1 Year on Labor |
|---|---|
| Warranty - Standard for Commercial | N/A |
iWarranty information is available in the Installation & Owner Manual.
