TRW03STeP TRW Model Series

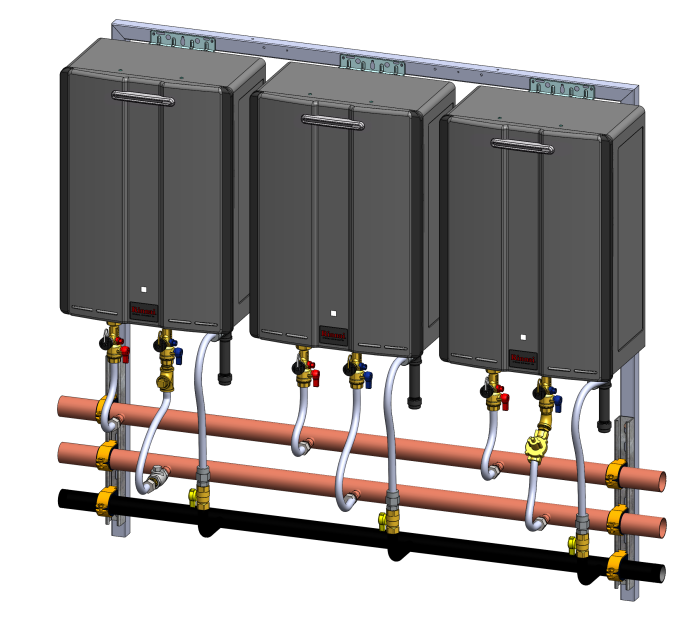

This three unit wall mounted design solution is a great replacement for standard and HE tanks and is ideal for food service and hospitality kitchen applications. Utilizing our most efficient SE+ model featuring ThermaCirc360, the internal pump provides easy recirculation capabilities.
- 97% Thermal Efficiency
- 15,000 BTU (minimum)
597,000 BTU (maximum) - Warranty
-
Supply Connections
Connection Connection Size Gas 1-1/4" MNPT / (32 mm) Cold Inlet 2" Copper Hot Outlet 2" Copper Condensate Drain 3/4" PVC / (19 mm) -
Product Depth 13 in / (330 mm) Product Height 56.67 in / (1439 mm) Product Width 65 in / (1651 mm) Product Weight 254 lb / (115.2 kg) Gas Type Propane Gas Recirculation Capable Yes Residential ENERGY STAR® Yes Domestic Hot Water Flow Rate (Maximum) 33 GPM / (124.9 l/min) Wi-Fi Capable Yes SCAQMD Approved Ultra Low NOx Warranty information is available in the Installation & Owner Manual.
-
