E75CRN E-Series Model Series
Select a thumbnail to view a larger version

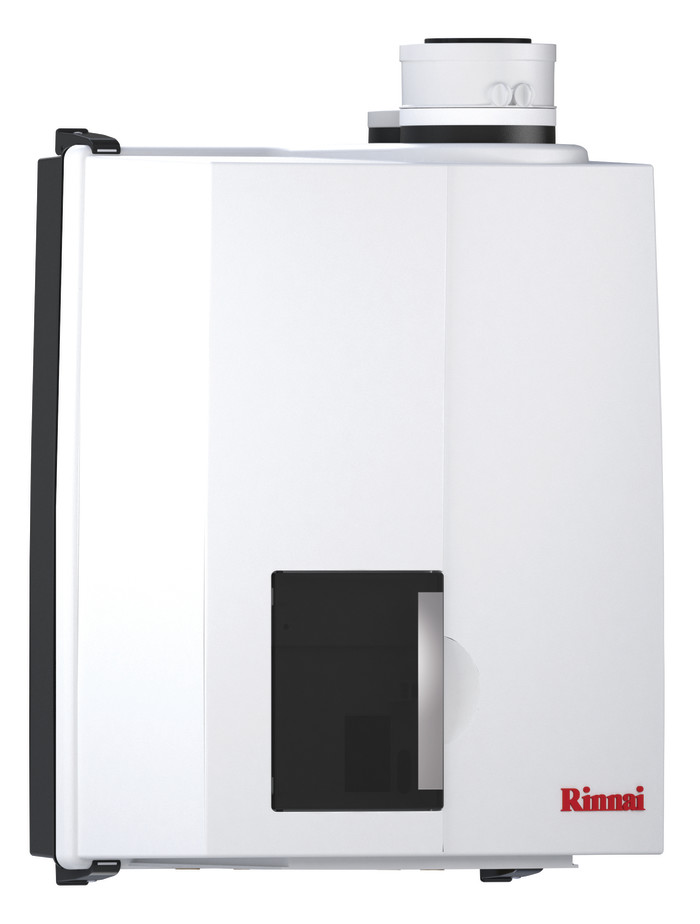

Rinnai E75CRN Residential Condensing combination, natural gas boiler is compact, wall mounted, and designed for easy installation as a retro-fit to traditional less efficient boilers and can deliver whole house heating and domestic hot water heating for homes with up to two bathrooms.
- Warranty
- 13,600 BTU / (4 kW) (minimum)
85,000 BTU / (25 kW) (maximum)
Specifications
| Manufacturer Trade Model Number - U.S. | E75CRN |
|---|---|
| Product Depth | 15.6 in / (395 mm) |
| Product Height | 32.8 in / (835 mm) |
| Product Width | 19.7 in / (500 mm) |
| Product Weight | 82 lb / (37 kg) |
| Gas Type | Natural Gas |
| Residential ENERGY STAR® | Yes |
| Domestic Hot Water Flow Rate (Maximum) | 2.1 GPM / (7.9 l/min) |
| SCAQMD Approved | Ultra Low NOx |
| Central Heating Capacity | 75,000 BTU / (22.0 kW) |
Documentation
-

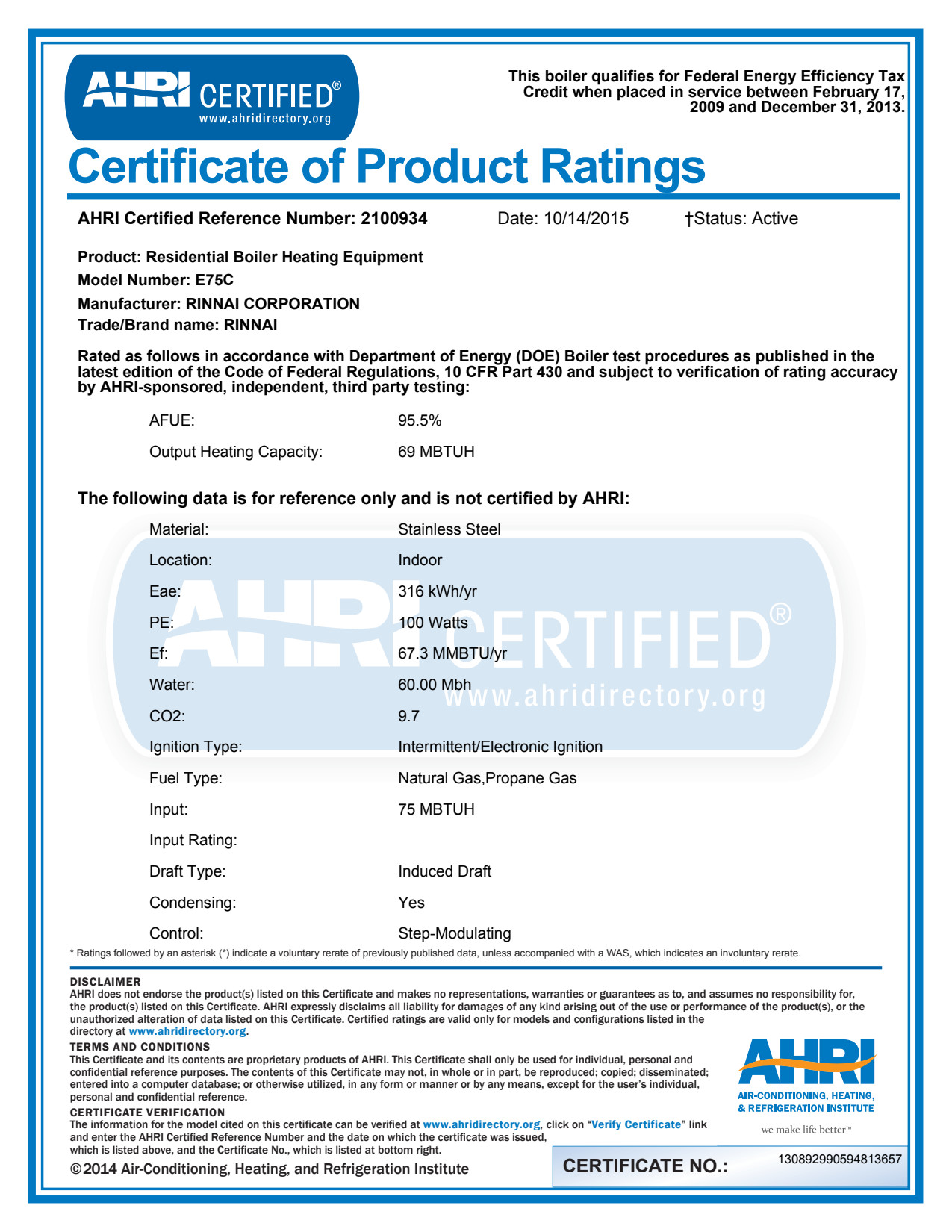

AHRICertificate-E75C.pdfPDF 222 KB
Manufacturer's_Certification_Statement_-_Rinnai_2010.pdfPDF 821 KB
Manufacturer's_Certification_Statement_-_Rinnai_2011.pdfPDF 55 KB
Manufacturer's_Certification_Statement_-_Rinnai_2012-2013.pdfPDF 63 KB
Manufacturer's_Certification_Statement_-_Rinnai_2014.pdfPDF 203 KB
Manufacturer's_Certification_Statement_-_Rinnai_2015-2016.pdfPDF 327 KB -

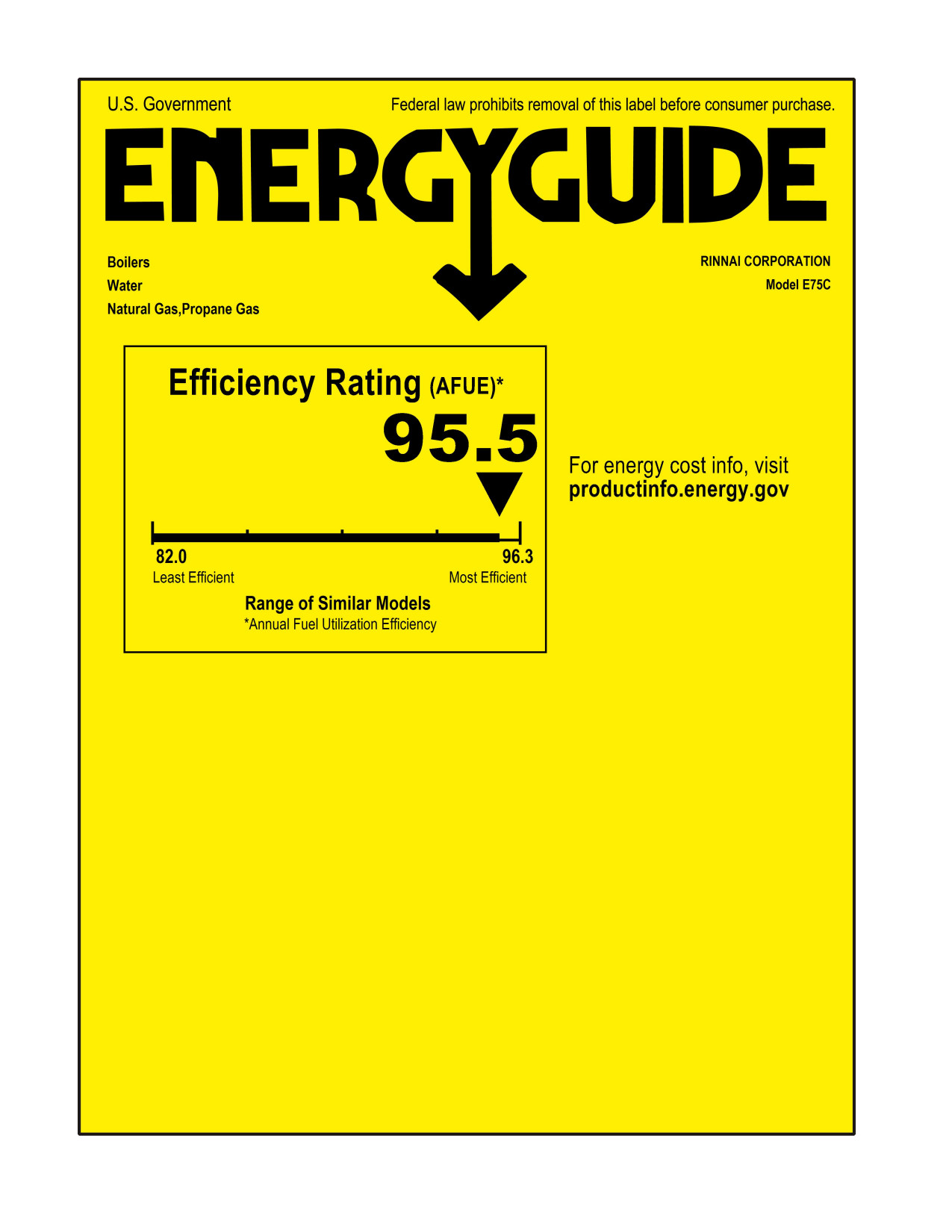

AHRIEnergyGuide-E75C.pdfPDF 590 KB -
800000056-Installation manual E-Combi Series V0116.pdfPDF 10 MB
8U516010 Installation manual E-Combi Series V0117_01.pdfPDF 4 MB
8W516007 Installation manual E-Combi Series ENG_FR V0117_01.pdfPDF 15 MB -
No documents found for this document type.
-
E75C,E110C-SpecSheet.pdfPDF 160 KB
E75CR-SP.pdfPDF 304 KB
SMKIT-SP1 E75C E110C Specification Sheet.pdfPDF 109 KB -
TB-061 Data plate for boiler gas type conversion.pdfPDF 244 KB
TB-063 Cleaners and Freeze Protection for Boilers.pdfPDF 90 KB
TB-064 Maximum Wall Thickness for Condensing Terminations.pdfPDF 293 KB
TB-065 Water Softener for Boilers.pdfPDF 18 KB
TB-066 Combi Boiler Valve Kits.pdfPDF 17 KB
TB-067 Boiler Manual Revisions.pdfPDF 866 KB
TB-068 Boiler Service Notification.pdfPDF 18 KB
TB-070 Boiler PVC Venting.pdfPDF 85 KB
TB-071 Using a Boiler with a Snow Melt System.pdfPDF 17 KB
TB-073 Condensing Termination Rain Ingress.pdfPDF 92 KB
TB-076 Boiler System Pump Power Connection.pdfPDF 17 KB
TB-077 E Boiler Control Tower Symbols.pdfPDF 100 KB
TB-079 Rinnai Ubbink Venting.pdfPDF 1 MB
TB-080 Termination Diverter Kit.pdfPDF 47 KB
TB-082 Domestic Hot Water Flow Switch Diagnostics (E Boilers).pdfPDF 132 KB
TB-083 Pump Commissioning Procedure (Boilers).pdfPDF 133 KB
TB-085 Dirt Trap for Boilers.pdfPDF 23 KB
TB-091 Boiler Wire Diagrams.pdfPDF 771 KB
TB-094 Centrotherm Venting for Boilers.pdfPDF 71 KB
TB-095 Boiler Blocking Code bl05.pdfPDF 296 KB
TB-096 Use Mineral Oil in the Boiler Condensate Trap.pdfPDF 31 KB
TB-102 Boiler Commissioning.pdfPDF 376 KB
TB-104 Live Fire Testing for Boilers.pdfPDF 211 KB
TB-110 Boiler Exhaust Vent Hanger and Support.pdfPDF 436 KB
TB-118 Bypassing De-Aeration Program on Rinnai Boilers.pdfPDF 1 MB
TB-126 Duravent Approval for Rinnai Boilers.pdfPDF 237 KB
TB-127 Boiler Certification Announcement.pdfPDF 297 KB
TB-128 E Combi DHW Mixing Valve.pdfPDF 251 KB
TB-136 4 Inch PVC CPVC Approved for Rinnai Boilers.pdfPDF 245 KB
TB-137 Combining Combustion Air and Exhaust into a Single Pipe is Prohibited.pdfPDF 317 KB
TB-155 Z-Flex Venting for Boilers.pdfPDF 202 KB
iWarranty information is available in the Installation & Owner Manual.
