HE Series Compact Infrared Radiant Tube Heater
Heat your indoor residential workshop, garage or light commercial space with comfortable, radiant heat from the Rinnai HE Compact Tube Heater. This lightweight, low intensity heater comes fully assembled and easily mounts with included accessories.
Available Model Options
- 40,000 BTU/HR natural gas [optional conversion kit for LPG]
- 120V 3-prong plug, 24V thermostat with 20 ft of 18/2 wire
- Whisper Quiet Modulation
- UL certified
- Corrosion-resistant aluminized steel construction
- 4” diameter U-tube provides 17’ of heat exchange tube in compact 10’-length
- Includes 4’ lion chain and four safety snap hooks
- Comes fully assembled
Warranty
- 10- year burner assembly and radiant tubes
- 3-year parts and components
Suggested Applications
- Residential garages
- Outdoor patios
- Home workshops
Residential use approved:
- In a vented space
- Overhead suspended type
- ANSI/CSA standards and code requirements do not allow direct connection of an outside combustion air duct to the heater
- Rigid connection to the gas supply is in compliance with gas code requirements
- Optionally, an installer may choose to connect to the gas supply using a metallic flexible gas connector
HE Compact Tube Heater Option
Accessory Option
TruTemp Thermostat
Conversion Kit Reference Documents
-

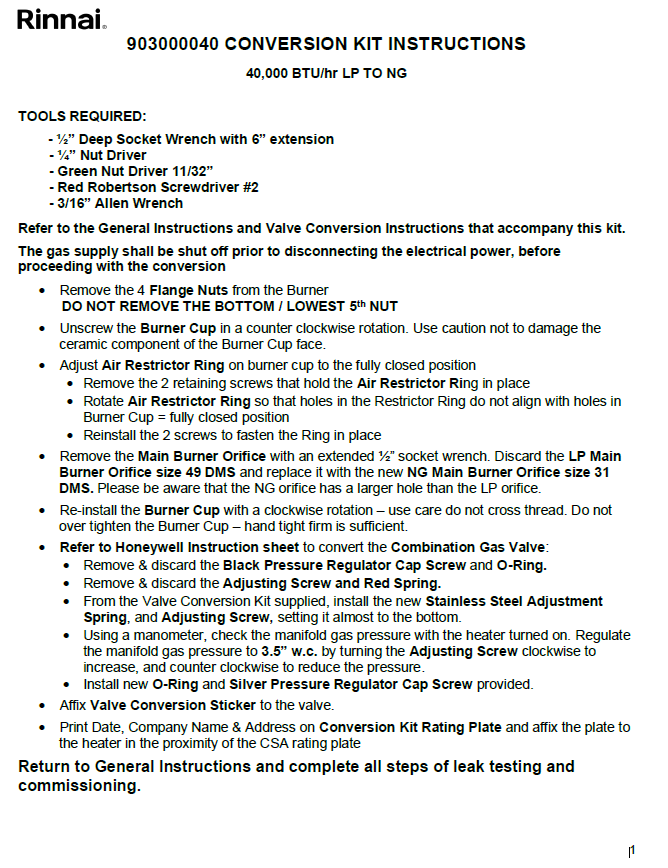

HE Series Infrared Gas Heater Conversion Manual LP to NG 900000024PDF 391.44 KB

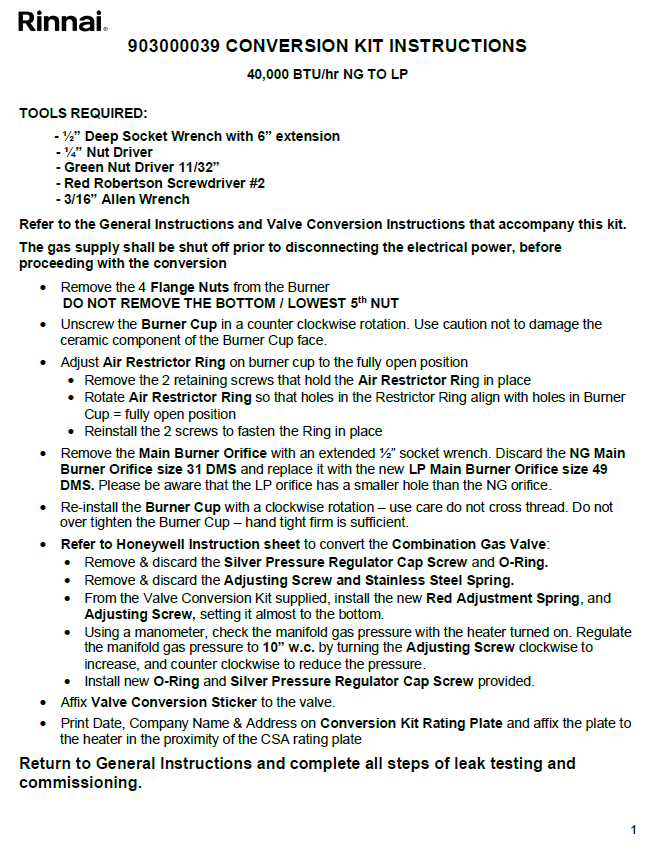

HE Series Infrared Gas Heater Conversion Manual NG to LP 900000023PDF 390.64 KB
